AN 37° Flare Adapter (DAN)
Description

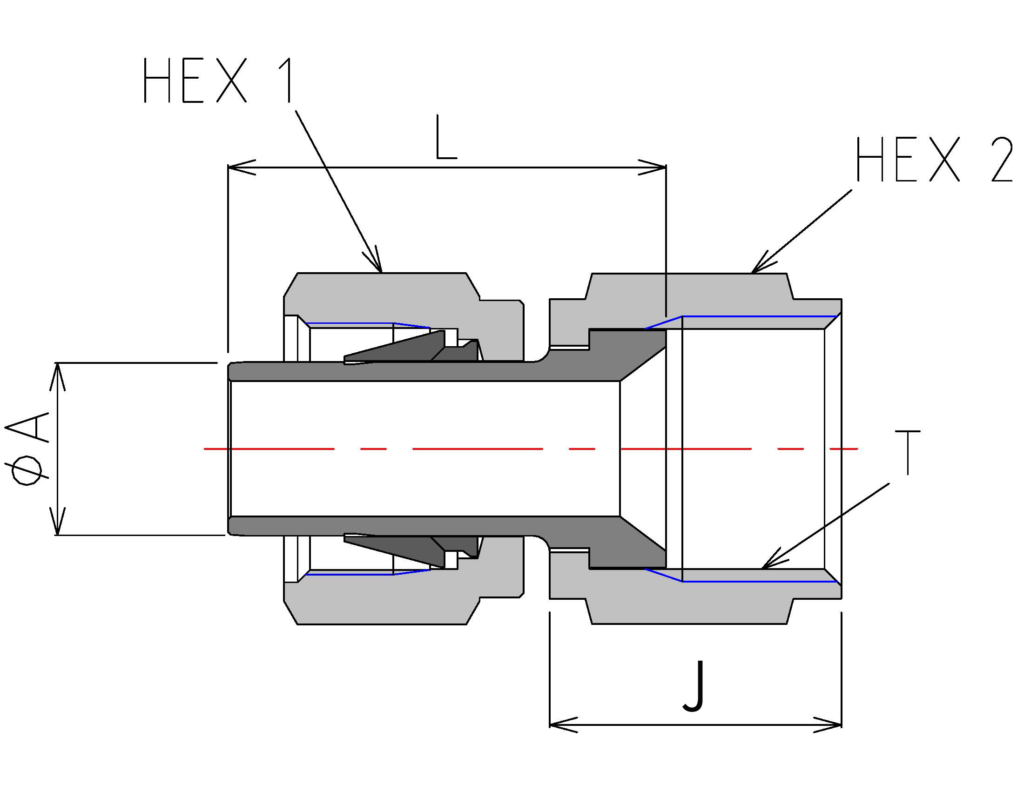

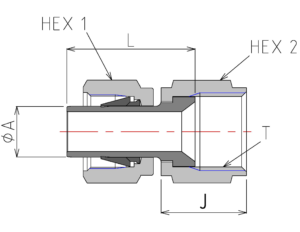

| inch (mm) |
|||||||
| Part No. | ØA | Hex 1 | AN | L | J | Hex 2 | T |
| Tube OD | UNF | ||||||
| DAN-2-2-* | 1/8 (3.18) |
7/16 | 1/8 | 0.77 (19.6) |
0.54 (13.8) |
3/8 | 5/16-24 |
| DAN-2-4-* | 1/8 (3.18) |
7/16 | 1/4 | 0.80 (20.2) |
0.62 (15.7) |
9/16 | 7/16-20 |
| DAN-4-4-* | 1/4 (6.35) |
9/16 | 1/4 | 0.88 (22.3) |
0.62 (15.7) |
9/16 | 7/16-20 |
| DAN-6-6-* | 3/8 (9.53) |
11/16 | 3/8 | 1.00 (25.3) |
0.72 (18.3) |
11/16 | 9/16-18 |
| DAN-8-8-* | 1/2 (12.7) |
7/8 | 1/2 | 1.26 (32.0) |
0.84 (21.3) |
7/8 | 3/4-16 |
| DAN-16-16-* | 1 (25.4) |
1-1/2 | 1 | 1.71 (43.5) |
1.12 (28.4) |
1-1/2 | 1-5/16-12 |
*Add suffix SS for 316 stainless steel or B for brass.
