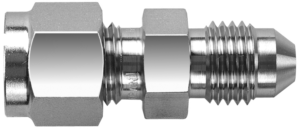

AN 37° Flare Union (DUC)
Description
| inch (mm) |
|||||||||||

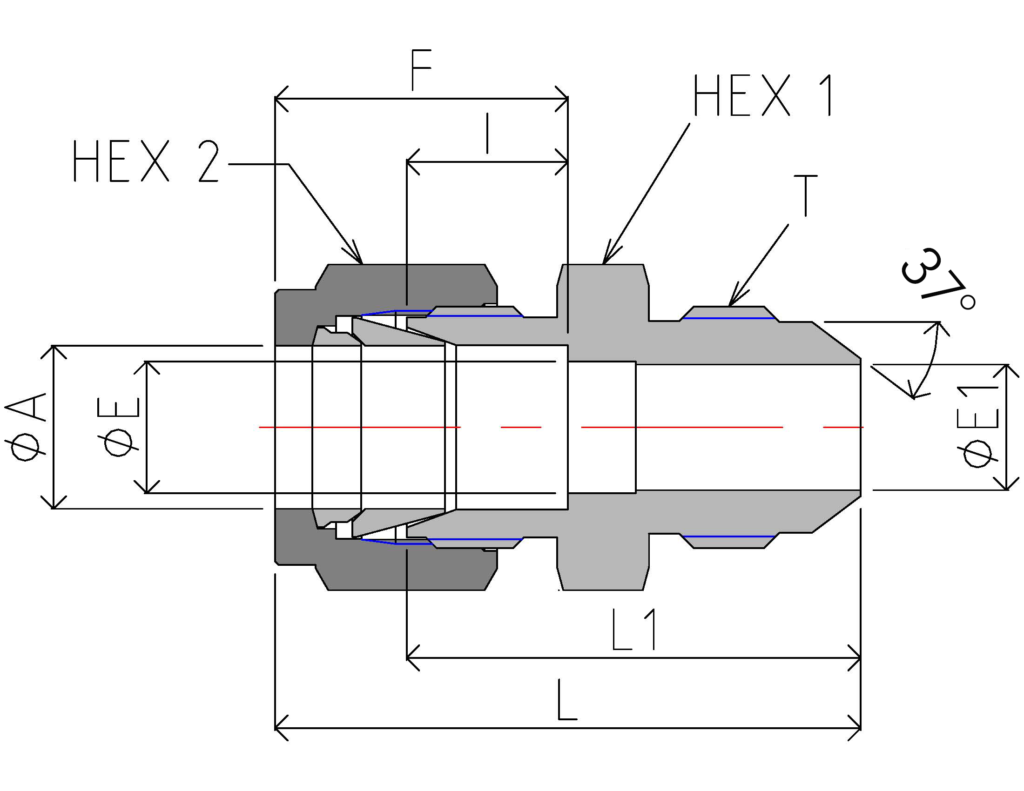

| Part No. | ØA | AN | ØE | ØE1 | I | F | L | L1 | Hex 1 | Hex 2 | T |
| Tube OD | UNF | ||||||||||
| DUC-1-2-* | 1/16 (1.59) |
1/8 | 0.05 (1.3) |
0.05 (1.3) |
0.19 (4.9) |
0.35 (8.9) |
1.08 (27.4) |
0.92 (23.4) |
7/16 | 5/16 | 5/16-24 |
| DUC-1-4-* | 1/16 (1.59) |
1/4 | 0.05 (1.3) |
0.17 (4.3) |
0.19 (4.9) |
0.35 (8.9) |
1.22 (31.0) |
1.06 (27.0) |
1/2 | 5/16 | 7/16-20 |
| DUC-2-2-* | 1/8 (3.18) |
1/8 | 0.09 (2.3) |
0.06 (1.5) |
0.25 (6.4) |
0.51 (13.0) |
1.24 (31.6) |
0.98 (24.9) |
7/16 | 7/16 | 5/16-24 |
| DUC-2-3-* | 1/8 (3.18) |
3/16 | 0.09 (2.3) |
0.12 (3.1) |
0.25 (6.4) |
0.51 (13.0) |
1.28 (32.6) |
1.02 (25.9) |
7/16 | 7/16 | 3/8-24 |
| DUC-2-4-* | 1/8 (3.18) |
1/4 | 0.09 (2.3) |
0.17 (4.3) |
0.25 (6.4) |
0.51 (13.0) |
1.38 (35.1) |
1.12 (28.4) |
1/2 | 7/16 | 7/16-20 |
| DUC-3-2-* | 3/16 (4.76) |
3/16 | 0.12 (3.0) |
0.06 (1.5) |
0.28 (7.2) |
0.54 (13.8) |
1.29 (32.7) |
1.02 (26.0) |
7/16 | 1/2 | 5/16-24 |
| DUC-3-3-* | 3/16 (4.76) |
3/16 | 0.12 (3.0) |
0.12 (3.1) |
0.28 (7.2) |
0.54 (13.8) |
1.33 (33.7) |
1.06 (27.0) |
7/16 | 1/2 | 3/8-24 |
| DUC-4-2-* | 1/4 (6.35) |
1/8 | 0.19 (4.8) |
0.06 (1.5) |
0.31 (7.9) |
0.61 (15.4) |
1.38 (35.0) |
1.08 (27.5) |
1/2 | 9/16 | 5/16-24 |
| DUC-4-4-* | 1/4 (6.35) |
1/4 | 0.19 (4.8) |
0.17 (4.3) |
0.31 (7.9) |
0.61 (15.4) |
1.48 (37.7) |
1.19 (30.2) |
1/2 | 9/16 | 7/16-20 |
| DUC-4-6-* | 1/4 (6.35) |
3/8 | 0.19 (4.8) |
0.28 (7.1) |
0.31 (7.9) |
0.61 (15.4) |
1.50 (38.0) |
1.20 (30.5) |
5/8 | 9/16 | 9/16-18 |
| DUC-5-5-* | 5/16 (7.94) |
5/16 | 0.24 (6.0) |
0.24 (6.0) |
0.35 (8.8) |
0.64 (16.3) |
1.53 (38.8) |
1.23 (31.3) |
9/16 | 5/8 | 1/2-20 |
| DUC-6-4-* | 3/8 (9.53) |
1/4 | 0.28 (7.1) |
0.17 (4.3) |
0.37 (9.5) |
0.67 (17.0) |
1.57 (39.8) |
1.27 (32.3) |
5/8 | 11/16 | 7/16-20 |
| DUC-6-6-* | 3/8 (9.53) |
3/8 | 0.28 (7.1) |
0.28 (7.1) |
0.37 (9.5) |
0.67 (17.0) |
1.57 (39.8) |
1.27 (32.3) |
5/8 | 11/16 | 9/16-18 |
| DUC-8-4-* | 1/2 (12.7) |
1/4 | 0.41 (10.4) |
0.17 (4.3) |
0.50 (12.7 |
0.91 (23.0) |
1.70 (43.3) |
1.30 (33.0) |
13/16 | 7/8 | 7/16-20 |
| DUC-8-6-* | 1/2 (12.7) |
3/8 | 0.41 (10.4) |
0.28 (7.1) |
0.50 (12.7 |
0.91 (23.0) |
1.70 (43.3) |
1.30 (33.0) |
13/16 | 7/8 | 9/16-18 |
| DUC-8-8-* | 1/2 (12.7) |
1/2 | 0.41 (10.4) |
0.39 (9.9) |
0.50 (12.7) |
0.91 (23.0) |
1.81 (45.9) |
1.40 (35.6) |
13/16 | 7/8 | 3/4-16 |
| DUC-10-8-* | 5/8 (15.88) |
1/2 | 0.50 (12.7) |
0.39 (9.9) |
0.56 (14.3) |
0.97 (24.6) |
1.84 (46.8) |
1.44 (36.5) |
15/16 | 1 | 3/4-16 |
| DUC-10-10-* | 5/8 (15.88) |
5/8 | 0.50 (12.7) |
0.48 (12.3) |
0.56 (14.3) |
0.97 (24.6) |
1.95 (49.5) |
1.54 (39.2) |
15/16 | 1 | 7/8-14 |
| DUC-12-8-* | 3/4 (19.05) |
1/2 | 0.62 (15.8) |
0.39 (9.9) |
0.56 (14.3) |
0.97 (24.6) |
1.94 (49.3) |
1.54 (39.0) |
1-1/8 | 1-1/8 | 3/4-16 |
| DUC-12-12-* | 3/4 (19.05) |
3/4 | 0.62 (15.8) |
0.62 (15.8) |
0.56 (14.3) |
0.97 (24.6) |
2.15 (54.5) |
1.74 (44.2) |
1-1/8 | 1-1/8 | 1-1/16-12 |
| DUC-16-12-* | 1 (25.4) |
3/4 | 0.89 (22.5) |
0.61 (15.5) |
0.75 (19.1) |
1.24 (31.6) |
2.39 (60.7) |
1.89 (48.1) |
1-3/8 | 1-1/2 | 1-1/16-12 |
| DUC-16-16-* | 1 (25.4) |
1 | 0.89 (22.5) |
0.85 (21.5) |
0.75 (19.1) |
1.24 (31.6) |
2.44 (61.9) |
1.94 (49.3) |
1-3/8 | 1-1/2 | 1-5/16-12 |
*Add suffix SS for 316 stainless steel or B for brass.
