Bulkhead Adapter (DSE)
Description
| inch (mm) |
|||||||||||||||

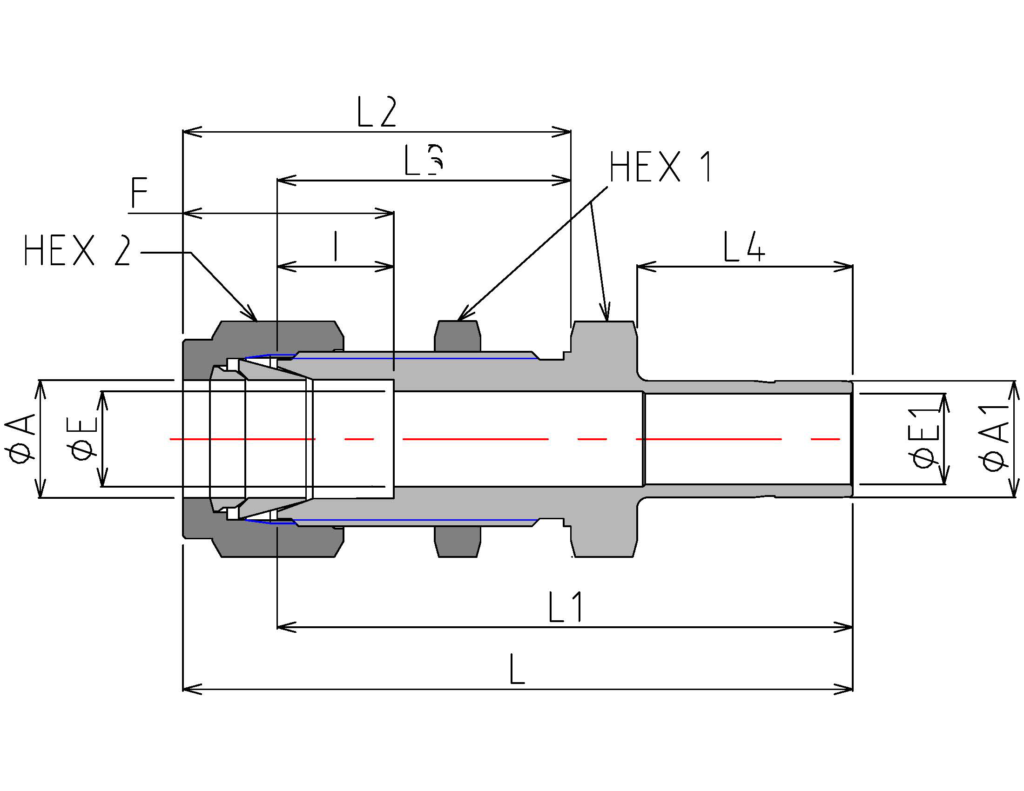

| Part No | ØA | ØA1 | ØE | ØE1 | F | I | L | L1 | L2 | L3 | L4 | Hex 1 | Hex 2 | Panel | |
| Tube OD | Tube OD |
Hole | Thickness | ||||||||||||
| DSE-2-2-* | 1/8 (3.18) |
1/8 (3.18) |
0.09 (2.3) |
0.07 (1.8) |
0.51 (13.0) |
0.25 (6.4) |
1.95 (49.6) |
1.69 (42.9) |
1.23 (31.3) |
0.97 (24.6) |
0.55 (14.0) |
1/2 | 7/16 | 0.33 (8.3) |
0.50 (12.7) |
| DSE-4-4-* | 1/4 (6.35) |
1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
0.61 (15.4) |
0.31 (7.9) |
2.20 (55.8) |
1.90 (48.3) |
1.32 (33.5) |
1.02 (26.0) |
0.65 (16.5) |
5/8 | 9/16 | 0.45 (11.5) |
0.40 (10.2) |
| DSE-5-5-* | 5/16 (7.94) |
5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
0.64 (16.3) |
0.35 (8.8) |
2.35 (59.6) |
2.05 (52.1) |
1.42 (36.0) |
1.12 (28.5) |
0.68 (17.2) |
11/16 | 5/8 | 0.52 (13.1) |
0.43 (10.9) |
| DSE-6-6-* | 3/8 (9.53) |
3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
0.67 (17.0) |
0.37 (9.5) |
2.43 (61.6) |
2.13 (54.1) |
1.46 (37.0) |
1.16 (29.5) |
0.71 (18.0) |
3/4 | 11/16 | 0.58 (14.7) |
0.44 (11.2) |
| DSE-8-8-* | 1/2 (12.7) |
1/2 (12.7) |
0.41 (10.4) |
0.39 (9.9) |
0.91 (23.0) |
0.50 (12.7) |
2.87 (73.0) |
2.47 (62.7) |
1.67 (42.3) |
1.26 (32.0) |
0.93 (23.5) |
15/16 | 7/8 | 0.76 (19.4) |
0.50 (12.7) |
| DSE-10-10-* | 5/8 (15.88) |
5/8 (15.88) |
0.50 (12.7) |
0.50 (12.7) |
0.97 (24.6) |
0.56 (14.3) |
2.96 (75.3) | 2.56 (65.0) | 1.69 (42.8) |
1.28 (32.5) |
0.99 (25.2) |
1-1/16 | 1 | 0.89 (22.6) |
0.50 (12.7) |
| DSE-12-12-* | 3/4 (19.05) |
3/4 (19.05) |
0.62 (15.8) |
0.59 (15.0) |
0.97 (24.6) |
0.56 (14.3) |
3.24 (82.3) | 2.83 (72.0) | 1.87 (47.6) |
1.47 (37.3) |
0.99 (25.2) |
1-3/16 | 1-1/8 | 1.02 (25.8) |
0.66 (16.8 ) |
| DSE-16-16-* | 1 (25.4) |
1 (25.4) |
0.89 (22.5) |
0.79 (20.1) |
1.24 (31.6) |
0.75 (19.1) |
4.03 (102.3) | 3.53 (89.7) | 2.28 (57.8) |
1.78 (45.2) |
1.28 (32.5) |
1-5/8 | 1-1/2 | 1.33 (33.7) |
0.75 (19.1) |
*Add suffix SS for 316 stainless steel or B for brass.
