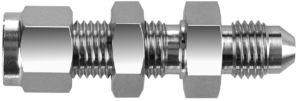

Bulkhead AN 37° Flare Union (DUE)
Description

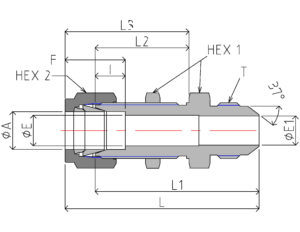

| inch (mm) |
|||||||||||||||
| Part No. | ØA | AN | ØE | ØE1 | I | F | L | L1 | L2 | L3 | Hex 1 | Hex 2 | T | Panel | |
| Tube OD | UNF | Hole | Thickness | ||||||||||||
| DUE-2-2-* | 1/8 (3.18) |
1/8 | 0.09 (2.3) |
0.06 (1.5) |
0.25 (6.4) |
0.51 (13.0) |
1.88 (47.7) |
1.61 (41.0) |
0.97 (24.6) |
1.23 (31.3) |
1/2 | 7/16 | 5/16-24 | 0.33 (8.3) |
0.50 (12.7) |
| DUE-2-3-* | 1/8 (3.18) |
3/16 | 0.09 (2.3) |
0.12 (3.1) |
0.25 (6.4) |
0.51 (13.0) |
1.92 (48.7) |
1.65 (42.0) |
0.97 (24.6) |
1.23 (31.3) |
1/2 | 7/16 | 7/16-20 | 0.33 (8.3) |
0.50 (12.7) |
| DUE-3-2-* | 3/16 (4.76) |
1/8 | 0.12 (3.0) |
0.06 (1.5) |
0.28 (7.2) |
0.54 (13.8) |
1.92 (48.7) |
1.65 (42.0) |
1.00 (25.5) |
1.27 (32.2) |
9/16 | 1/2 | 5/16-24 | 0.39 (9.9) |
0.50 (12.7) |
| DUE-3-3-* | 3/16 (4.76) |
3/16 | 0.12 (3.0) |
0.12 (3.1) |
0.28 (7.2) |
0.54 (13.8) |
1.96 (49.7) |
1.69 (43.0) |
1.00 (25.5) |
1.27 (32.2) |
9/16 | 1/2 | 3/8-24 | 0.39 (9.9) |
0.50 (12.7) |
| DUE-4-4-* | 1/4 (6.35) |
1/4 | 0.19 (4.8) |
0.17 (4.3) |
0.31 (7.9) |
0.61 (15.4) |
2.13 (54.0) |
1.83 (46.5) |
1.02 (26.0) |
1.32 (33.5) |
5/8 | 9/16 | 7/16-20 | 10.06 (1.5) |
0.40 (10.2) |
| DUE-6-4-* | 3/8 (9.53) |
1/4 | 0.28 (7.1) |
0.17 (4.3) |
0.37 (9.5) |
0.67 (17.0) |
2.26 (57.3) |
1.96 (49.9) | 1.46 (37.0) |
1.16 (29.5) |
3/4 | 11/16 | 7/16-20 | 0.58 (14.7) |
0.44 (11.2) |
| DUE-6-6-* | 3/8 (9.53) |
3/8 | 0.28 (7.1) |
0.28 (7.1) |
0.37 (9.5) |
0.67 (17.0) |
2.26 (57.3) |
1.96 (49.8) |
1.16 (29.5) |
1.46 (37.0) |
3/4 | 11/16 | 9/16-18 | 0.58 (14.7) |
0.44 (11.2) |
| DUE-8-6-* | 1/2 (12.7) |
3/8 | 0.41 (10.4) |
0.28 (7.1) |
0.50 (12.7) |
0.91 (23.0) |
2.49 (63.3) |
2.09 (53.0) |
1.26 (32.0) |
1.67 (42.3) |
15/16 | 11/16 | 9/16-18 | 0.76 (19.4) |
0.50 (12.7) |
| DUE-8-8-* | 1/2 (12.7) |
1/2 | 0.41 (10.4) |
0.39 (9.9) |
0.50 (12.7) |
0.91 (23.0) |
2.60 (66.0) |
2.19 (55.7) |
1.26 (32.0) |
1.67 (42.3) |
15/16 | 7/8 | 3/4-16 | 0.76 (19.4) |
0.50 (12.7) |
| DUE-12-12-* | 3/4 (19.05) |
3/4 | 0.62 (15.8) |
0.62 (15.8) |
0.56 (14.3) |
0.97 (24.6) |
3.11 (79.1) |
2.71 (68.8) |
1.47 (37.3) |
1.87 (47.6) |
1-3/16 | 1-1/8 | 1-1/16-12 | 1.02 (25.8) |
0.66 (16.8 ) |
| DUE-16-16-* | 1 (25.4) |
1 | 0.89 (22.5) |
0.85 (21.5) |
0.75 (19.1) |
1.24 (31.6) |
3.65 (92.8) |
3.16 (80.2) |
1.78 (45.2) |
2.28 (57.8) |
1-5/8 | 1-1/12 | 1-5/16-12 | 1.33 (33.7) |
0.75 (19.1) |
*Add suffix SS for 316 stainless steel or B for brass.
