Bulkhead Male NPT Connector (DSC)

Bulkhead Male NPT Connector (DSC)
Bulkhead Male NPT Connector (DSC)
Bulkhead Male NPT Connector (DSC)

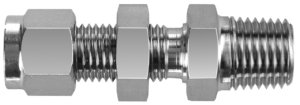

Description
inch
(mm)

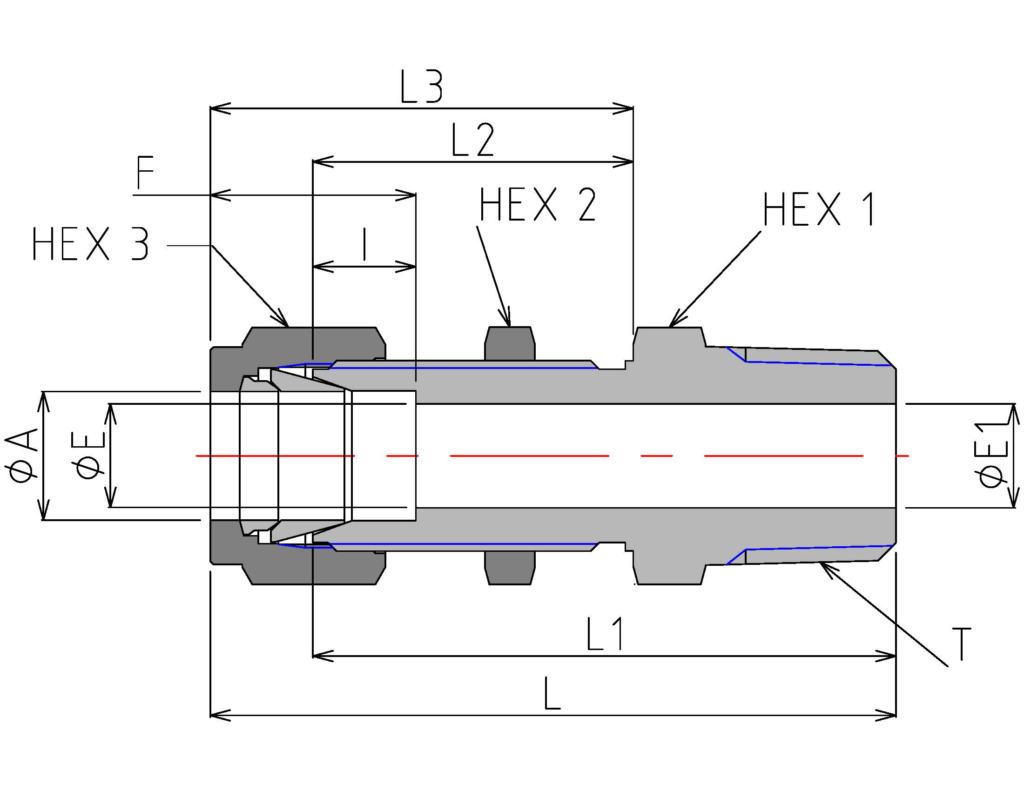

Part No. ØA ØE ØE1 L I L2 L3 L1 F Hex 1 Hex 2 Hex 3 T Panel
Tube OD NPT Hole Thickness
  DSC-1-1-* 1/16
(1.59)		 0.05
(1.3)		 0.12
(3.0)		 1.20
(30.5)		 0.19
(4.9)		 0.53
(13.5)		 0.69
(17.5)		 1.04
(26.5)		 0.35
(8.9)		 5/16 5/16 5/16 1/16 0.20
(5.2)		 0.12
(3.0)
  DSC-1-2-* 1/16
(1.59)		 0.05
(1.3)		 0.19
(4.8)		 1.26
(32.0)		 0.19
(4.9)		 0.53
(13.5)		 0.69
(17.5)		 1.10
(28.0)		 0.35
(8.9)		 7/16 5/16 5/16 1/8 0.20
(5.2)		 0.12
(3.0)
 DSC-2-2-* 1/8
(3.18)		 0.09
(2.3)		 0.19
(4.8)		 1.84
(46.7)		 0.25
(6.4)		 0.97
(24.6)		 1.23
(31.3)		 1.57
(40.0)		 0.51
(13.0)		 1/2 1/2 7/16 1/8 0.33
(8.3)		 0.50
(12.7)
 DSC-4-2-* 1/4
(6.35)		 0.19
(4.8)		 0.19
(4.8)		 1.44
(36.5)		 0.31
(7.9)		 1.02
(26.0)		 1.32
(33.5)		 1.66
(42.2)		 0.61
(15.4)		 5/8 5/8 9/16 1/8 0.45
(11.5)		 0.40
(10.2)
 DSC-4-4-* 1/4
(6.35)		 0.19
(4.8)		 0.19
(4.8)		 2.11
(53.5)		 0.31
(7.9)		 1.02
(26.0)		 1.32
(33.5)		 1.81
(46.0)		 0.61
(15.4)		 5/8 5/8 9/16 1/4 0.45
(11.5)		 0.40
(10.2)
 DSC-4-6-* 1/4
(6.35)		 0.19
(4.8)		 0.19
(4.8)		 2.13
(54.2)		 0.31
(7.9)		 1.02
(26.0)		 1.32
(33.5)		 1.84
(46.7)		 0.61
(15.4)		 11/16 5/8 9/16 3/8 0.45
(11.5)		 0.40
(10.2)
 DSC-4-8-* 1/4
(6.35)		 0.19
(4.8)		 0.19
(4.8)		 2.35
(59.8)		 0.31
(7.9)		 1.02
(26.0)		 1.32
(33.5)		 2.06
(52.3)		 0.61
(15.4)		 7/8 5/8 9/16 1/2 0.45
(11.5)		 0.40
(10.2)
 DSC-5-2-* 5/16
(7.94)		 0.25
(6.4)		 0.19
(4.8)		 2.06
(52.4)		 0.35
(8.8)		 1.12
(28.5)		 1.42
(36.0)		 1.77
(44.9)		 0.64
(16.3)		 11/16 11/16 5/8 1/8 0.52
(13.1)		 0.43
(10.9)
 DSC-5-4-* 5/16
(7.94)		 0.25
(6.4)		 0.25
(6.4)		 2.22
(56.4)		 0.35
(8.8)		 1.12
(28.5)		 1.42
(36.0)		 1.93
(48.9)		 0.64
(16.3)		 11/16 11/16 5/8 1/4 0.52
(13.1)		 0.43
(10.9)
 DSC-5-6-* 5/16
(7.94)		 0.25
(6.4)		 0.25
(6.4)		 2.23
(56.7)		 0.35
(8.8)		 1.12
(28.5)		 1.42
(36.0)		 1.94
(49.2)		 0.64
(16.3)		 11/16 11/16 5/8 3/8 0.52
(13.1)		 0.43
(10.9)
 DSC-6-2-* 3/8
(9.53)		 0.28
(7.1)		 0.19
(4.8)		 2.10
(53.4)		 0.37
(9.5)		 1.16
(29.5)		 1.46
(37.0)		 1.81
(45.9)		 0.67
(17.0)		 3/4 3/4 11/16 1/8 0.58
(14.7)		 0.44
(11.2)
 DSC-6-4-* 3/8
(9.53)		 0.28
(7.1)		 0.28
(7.1)		 2.26
(57.5)		 0.37
(9.5)		 1.16
(29.5)		 1.46
(37.0)		 1.97
(50.0)		 0.67
(17.0)		 3/4 3/4 11/16 1/4 0.58
(14.7)		 0.44
(11.2)
 DSC-6-6-* 3/8
(9.53)		 0.28
(7.1)		 0.28
(7.1)		 2.26
(57.5)		 0.37
(9.5)		 1.16
(29.5)		 1.46
(37.0)		 1.97
(50.0)		 0.67
(17.0)		 3/4 3/4 11/16 3/8 0.58
(14.7)		 0.44
(11.2)
 DSC-6-8-* 3/8
(9.53)		 0.28
(7.1)		 0.28
(7.1)		 2.60
(66.0)		 0.37
(9.5)		 1.16
(29.5)		 1.46
(37.0)		 2.30
(58.5)		 0.67
(17.0)		 7/8 3/4 11/16 1/2 0.58
(14.7)		 0.44
(11.2)
 DSC-8-4-* 1/2
(12.7)		 0.41
(10.4)		 0.28
(7.1)		 2.51
(63.7)		 0.50
(12.7)		 1.26
(32.0)		 1.67
(42.3)		 2.10
(53.4)		 0.91
(23.0)		 15/16 15/16 7/8 1/4 0.76
(19.4)		 0.50
(12.7)
 DSC-8-6-* 1/2
(12.7)		 0.41
(10.4)		 0.41
(10.4)		 2.49
(63.3)		 0.50
(12.7)		 1.26
(32.0)		 1.67
(42.3)		 2.09
(53.0)		 0.91
(23.0)		 15/16 15/16 7/8 3/8 0.76
(19.4)		 0.50
(12.7)
 DSC-8-8-* 1/2
(12.7)		 0.41
(10.4)		 0.41
(10.4)		 2.69
(68.3)		 0.50
(12.7)		 1.26
(32.0)		 1.67
(42.3)		 2.28
(58.0)		 0.91
(23.0)		 15/16 15/16 7/8 1/2 0.76
(19.4)		 0.50
(12.7)
 DSC-8-12-* 1/2
(12.7)		 0.41
(10.4)		 0.41
(10.4)		 2.73
(69.4)		 0.50
(12.7)		 1.26
(32.0)		 1.67
(42.3)		 2.33
(59.1)		 0.91
(23.0)		 1-1/16 15/16 7/8 3/4 0.76
(19.4)		 0.50
(12.7)
 DSC-10-6-* 5/8
(15.88)		 0.50
(12.7)		 0.41
(10.4)		 2.56
(64.9)		 0.56
(14.3)		 1.28
(32.5)		 1.69
(42.8)		 2.15
(54.6)		 0.97
(24.6)		 1-1/16 1-1/16 1 3/8 0.89
(22.6)		 0.50
(12.7)
 DSC-10-8-* 5/8
(15.88)		 0.50
(12.7)		 0.50
(12.7)		 2.75
(69.9)		 0.56
(14.3)		 1.28
(32.5)		 1.69
(42.8)		 2.35
(59.6)		 0.97
(24.6)		 1-1/16 1-1/16 1 1/2 0.89
(22.6)		 0.50
(12.7)
 DSC-10-12-* 5/8
(15.88)		 0.50
(12.7)		 0.62
(15.8)		 2.75
(69.8)		 0.56
(14.3)		 1.28
(32.5)		 1.69
(42.8)		 2.34
(59.5)		 0.97
(24.6)		 1-1/16 1-1/16 1 3/4 0.89
(22.6)		 0.50
(12.7)
 DSC-12-8-* 3/4
(19.05)		 0.62
(15.8)		 0.50
(12.7)		 3.00
(76.1)		 0.56
(14.3)		 1.47
(37.3)		 1.87
(47.6)		 2.59
(65.8)		 0.97
(24.6)		 1-3/16 1-3/16 1-1/8 1/2 1.02
(25.8)		 0.66
(16.8 )
 DSC-12-12-* 3/4
(19.05)		 0.62
(15.8)		 0.62
(15.8)		 3.00
(76.1)		 0.56
(14.3)		 1.47
(37.3)		 1.87
(47.6)		 2.59
(65.8)		 0.97
(24.6)		 1-3/16 1-3/16 1-1/8 3/4 1.02
(25.8)		 0.66
(16.8 )
 DSC-14-12-* 7/8
(22.23)		 0.72
(18.3)		 0.72
(18.3)		 3.18
(80.7)		 0.63
(15.9)		 1.62
(41.2)		 2.02
(51.4)		 2.78
(70.5)		 1.03
(26.1)		 1-3/8 1-3/8 1-1/8 3/4 1.14
(29.0)		 0.77
(19.6)
 DSC-16-16-* 1
(25.4)		 0.89
(22.5)		 0.89
(22.5)		 3.69
(93.7)		 0.75
(19.1)		 1.78
(45.2)		 2.28
(57.8)		 3.19
(81.1)		 1.24
(31.6)		 1-5/8 1-5/8 1-1/2 1 1.33
(33.7)		 0.75
(19.1)

*Add suffix SS for 316 stainless steel or B for brass.
ISO thread is available.
