Bulkhead Union Elbow (DSL)

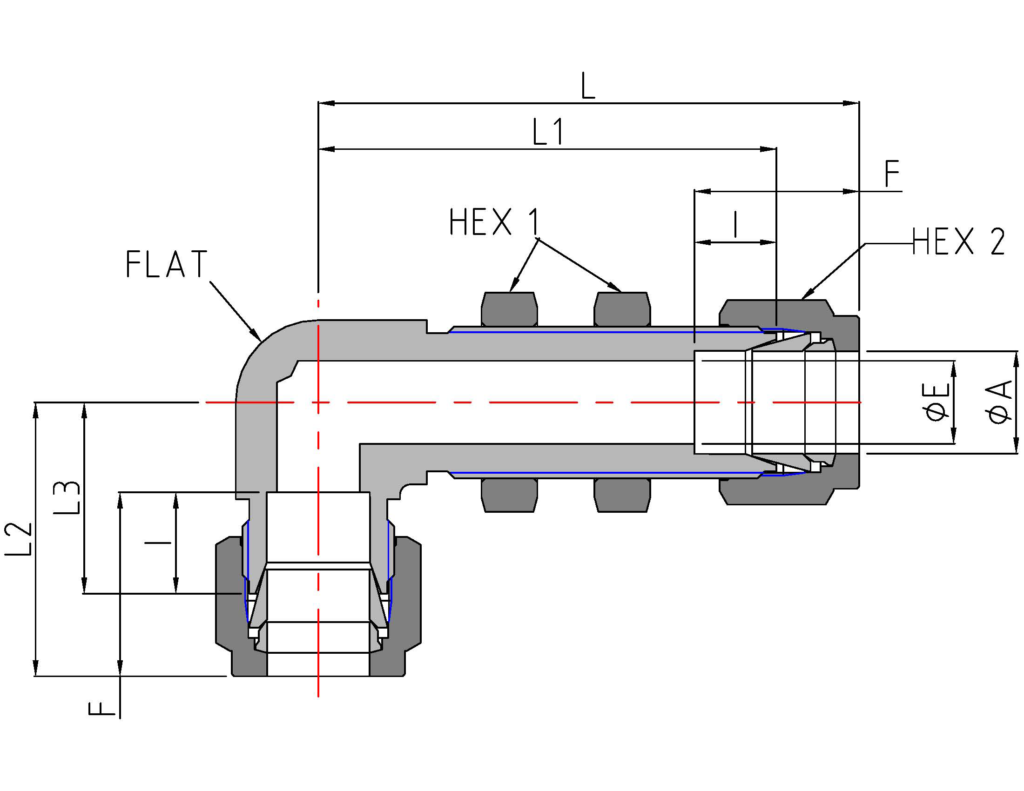

Description
| inch (mm) |
|||||||||||||
| Part No. | ØA | ØE | L | I | L1 | L2 | L3 | F | Hex 1 | Hex 2 | Flat | Panel | |
| Tube OD | Hole | Thickness | |||||||||||
| DSL-2-SS | 1/8 (3.18) |
0.09 (2.3) |
1.94 (49.2) |
0.25 (6.4) |
1.67 (42.5) |
0.89 (22.5) |
0.62 (15.8) |
0.51 (13.0) |
1/2 | 7/16 | 3/8 | 0.33 (8.3) |
0.50 (12.7) |
| DSL-3-SS | 3/16 (4.76) |
0.12 (3.0) |
2.04 (51.7) |
0.28 (7.2) |
1.77 (45.0) |
1.01 (25.7) |
0.75 (19.0) |
0.54 (13.8) |
9/16 | 1/2 | 1/2 | 0.39 (9.9) |
0.50 (12.7) |
| DSL-4-SS | 1/4 (6.35) |
0.19 (4.8) |
2.11 (53.5) |
0.31 (7.9) |
1.81 (46.0) |
1.08 (27.5) |
0.79 (20.0) |
0.61 (15.4) |
5/8 | 9/16 | 1/2 | 0.45 (11.5) |
0.40 (10.2) |
| DSL-5-SS | 5/16 (7.94) |
0.25 (6.4) |
2.32 (59.0) |
0.35 (8.8) |
2.03 (51.5) |
1.18 (30.0) |
0.89 (22.5) |
0.64 (16.3) |
11/16 | 5/8 | 5/8 | 0.52 (13.1) |
0.43 (10.9) |
| DSL-6-SS | 3/8 (9.53) |
0.28 (7.1) |
2.36 (60.0) |
0.37 (9.5) |
2.07 (52.5) |
1.20 (30.5) |
0.91 (23.0) |
0.67 (17.0) |
3/4 | 11/16 | 5/8 | 0.58 (14.7) |
0.44 (11.2) |
| DSL-8-SS | 1/2 (12.7) |
0.41 (10.4) |
2.67 (67.8) |
0.50 (12.7) |
2.26 (57.5) |
1.39 (35.3) |
0.94 (24.0) |
0.91 (23.0) |
15/16 | 7/8 | 13/16 | 0.76 (19.4) |
0.50 (12.7) |
| DSL-10-SS | 5/8 (15.88) |
0.50 (12.7) |
2.83 (71.8) |
0.56 (14.3) |
2.42 (61.5) |
1.47 (37.3) |
1.06 (27.0) |
0.97 (24.6) |
1-1/16 | 1 | 15/16 | 0.89 (22.6) |
0.50 (12.7) |
| DSL-12-SS | 3/4 (19.05) |
0.62 (15.8) |
3.08 (78.3) |
0.56 (14.3) |
2.68 (68.0) |
1.52 (38.5) |
1.11 (28.2) |
0.97 (24.6) |
1-3/16 | 1-1/8 | 1-1/16 | 1.02 (25.8) |
0.66 (16.8) |
*Available in 316 stainless steel only.
