Cap (DCA)

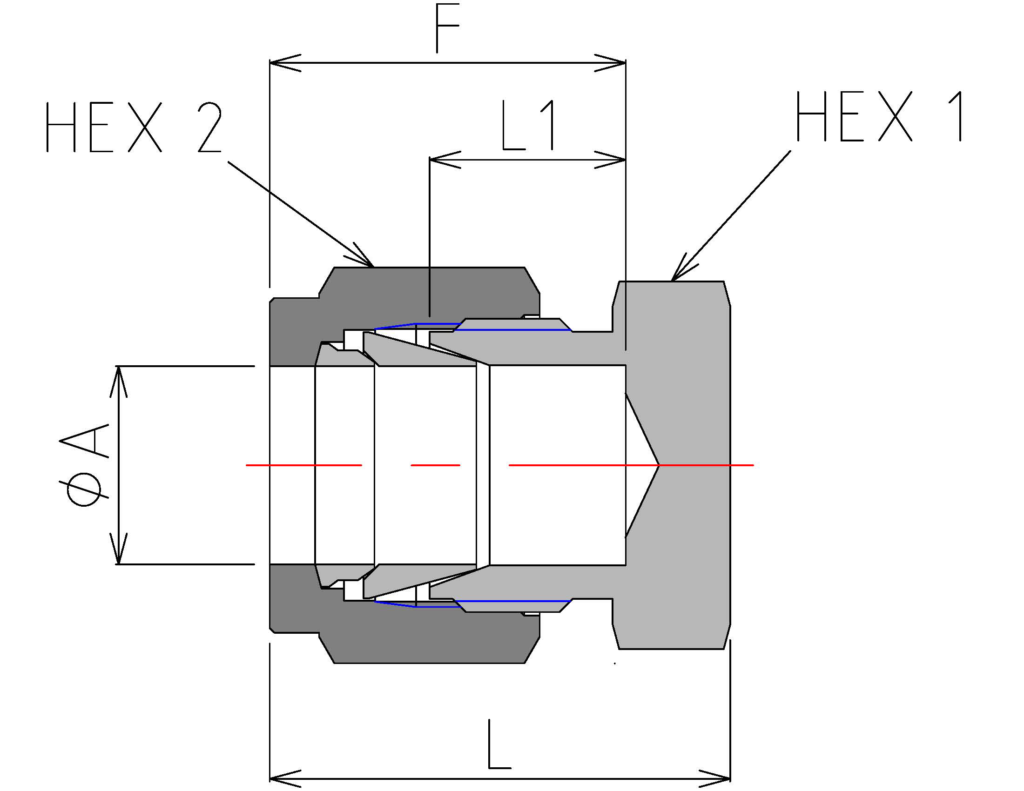

Description
| inch (mm) |
|||||||
| Part No. | ØA Tube OD |
I | L | L1 | F | Hex 1 | Hex 2 |
| DCA-1-* | 1/16 (1.59) |
0.19 (4.9) |
0.59 (15.0) |
0.43 (11.0) |
0.35 (8.9) |
5/16 | 5/16 |
| DCA-2-* | 1/8 (3.18) |
0.25 (6.4) |
0.80 (20.2) |
0.53 (13.5) |
0.51 (13.0) |
7/16 | 7/16 |
| DCA-3-* | 3/16 (4.76) |
0.28 (7.2) |
0.85 (21.7) |
0.59 (15.0) |
0.54 (13.8) |
7/16 | 1/2 |
| DCA-4-* | 1/4 (6.35) |
0.31 (7.9) |
0.93 (23.5) |
0.63 (16.0) |
0.61 (15.4) |
1/2 | 9/16 |
| DCA-5-* | 5/16 (7.94) |
0.35 (8.8) |
0.96 (24.5) |
0.67 (17.0) |
0.64 (16.3) |
9/16 | 5/8 |
| DCA-6-* | 3/8 (9.53) |
0.37 (9.5) |
1.02 (26.0) |
0.73 (18.5) |
0.67 (17.0) |
5/8 | 11/16 |
| DCA-8-* | 1/2 (12.7) |
0.50 (12.7) |
1.17 (29.8) |
0.77 (19.5) |
0.91 (23.0) |
13/16 | 7/8 |
| DCA-10-* | 5/8 (15.88) |
0.56 (14.3) |
1.19 (30.3) |
0.79 (20.0) |
0.97 (24.6) |
15/16 | 1 |
| DCA-12-* | 3/4 (19.05) |
0.56 (14.3) |
1.25 (31.8) |
0.85 (21.5) |
0.97 (24.6) |
1-1/16 | 1-1/8 |
| DCA-14-* | 7/8 (22.23) |
0.63 (15.9) |
1.34 (34.1) |
0.94 (23.9) |
1.03 (26.1) |
1-3/16 | 1-1/4 |
| DCA-16-* | 1 (25.4) |
0.75 (19.1) |
1.52 (38.7) |
1.03 (26.1) |
1.24 (31.6) |
1-3/8 | 1-1/2 |
*Add suffix SS for 316 stainless steel or B for brass.
