Cryogenic Relief Valve (CRV)
Cryogenic Relief Valve (CRV)
Cryogenic Relief Valve (CRV)
Cryogenic Relief Valve (CRV)
Cryogenic Relief Valve (CRV)
Cryogenic Relief Valve (CRV)
Cryogenic Relief Valve (CRV)

1/4", 3/8” and 1/2" NPT
Set Pressure Range 10 - 750 Psig (0.7 - 51.7 Bar)

Description

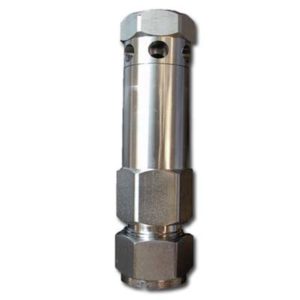

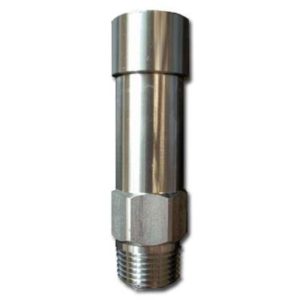

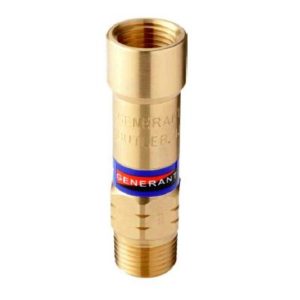

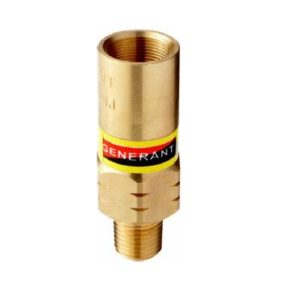

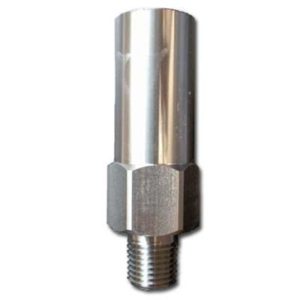

The Generant Series Brass CRV, Cryogenic Relief Valve is a spring reference over pressure protection device. The CRV incorporates Generant’s exclusive “Dirt Guard” feature which increases the valves ability to tolerate particulate contamination. This device is ideally suited for use as a “Blocked Line Safety” in cryogenic systems. The CRV is supplied cleaned and packaged for oxygen service. The valve can be ordered with set pressures ranging from 10 to 750 Psig (0.7 to 51.7 Bar) and come factory preset and permanently locked. Relief pressure can not be altered or adjusted in the field. Seat and poppet geometry combined with optimized spring ranges provide high flow rates with minimum pressure accumulation. Compact design and availability of a variety of inlet and outlet configurations reduces size and piping requirements. Relief pressure can be discharged to atmosphere or to a downstream connection. The CRV is supplied with Flourosilicone seals for set pressures from 10 – 49 Psig (0.7 – 3.4 Bar) and PCTFE seals for set pressures greater then 50 – 750 Psig (3.5 – 51.7 Bar)

Features

  • Available CE marked in accordance to the requirements of the PED
  • Exclusive “Dirt Guard” poppet incorporates screen to extend valve and reliability
  • High Flow Capacity and Excellent Reseat Performance
  • Supplied Factory Preset Set and Permanently Locked for Tamper Proof Service
  • Discharge to Atmosphere or a Wide Varity of Inline Piping Configurations
  • Optional Deflector Cap available for diverting exhausted gas
  • 100% Factory Tested for Leakage, Crack and Reseal
  • Cleaned and Packaged for Oxygen Service

Technical Data

  • Nominal Set Pressure Range: 10 – 750 Psig (0.7 to 51.7 Bar)
  • Factory Set Tolerance*:
    • Set Pressure ≤ 28.90 Psig, ± 5%
    • Set Pressure 29.00 – 48.30 PSI, ± 1.45 Psig
    • Set Pressure ≥ 48.40 Psig, ± 3%
      *tolerance specifications per EN ISO 4126-1.
  • Zero Leakage to 95% of Set Pressure
  • Full Rated Flow @ 110% of Set Pressure
    • Unaffected by up to 10% Back Pressure
  • Reseat:
    • 90% of set pressure
    • 85% for PCTFE seals set below 100 Psig (6.9 Bar)
  • Temperature Rating:
    • -320º to 350º F (-196º C to 176º C) based on seal material

Materials of Construction

  • Brass Body Construction
  • 316 Stainless Steel Body Construction
