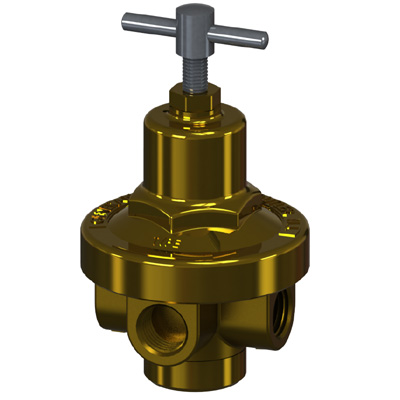

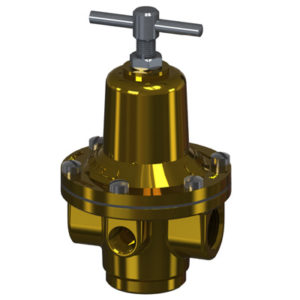

High Capacity Pressure Regulators (Series HC)

High Capacity Pressure Regulators (Series HC)
High Capacity Pressure Regulators (Series HC)
High Capacity Pressure Regulators (Series HC)
High Capacity Pressure Regulators (Series HC)

1/4", 3/8” and 1/2" NPT
Inlet 400 Psig (27.6 Bar)

Description

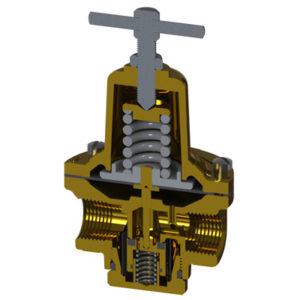

The Generant Series HC, High Capacity Regulators are ideally suited for industrial applications requiring a rugged high flow pressure regulator. The Series HC features Heavy Duty all metallic body and spring chambers and are easily rebuilt in the field. The Series HC is available in Relieving and Non-Relieving configurations ideally suited for both liquid and gas service.

Features

  • 3/8″ and 1/2″ Regulators are fully balanced to maintain constant delivery pressure regardless of inlet pressure fluctuations. 1/4″ Regulators are currently available non-balanced only
  • Available Relieving or Non-Relieving
  • Optimized spring performance and patented Venturi tube provides high flow rates with low droop
  • Easily cleanable by removing bottom plug
  • Optional Plastic knob and Panel Mounting Configurations

Technical Data

  • Maximum Inlet Pressure: 400 Psig (27.6 Bar)
  • Temperature Rating: -20 to 200 °F (-30 to 95 °C)
