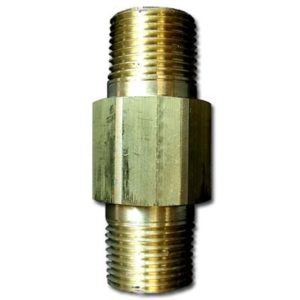

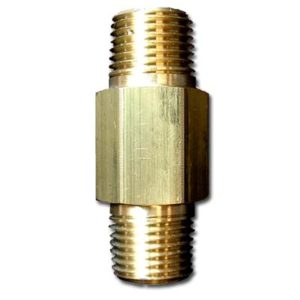

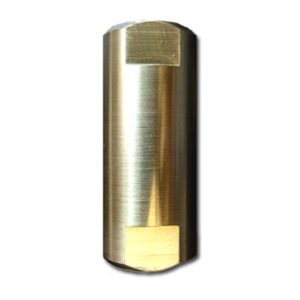

High Pressure Check Valve (HPCV)

High Pressure Check Valve (HPCV)
High Pressure Check Valve (HPCV)
High Pressure Check Valve (HPCV)
High Pressure Check Valve (HPCV)
High Pressure Check Valve (HPCV)

1/4” & 1/2" NPT
MAWP up to 10,000 Psig (690 Bar)

Description

Series HPCV is a High Pressure, One-Piece Body, Zero Leak, Check Valve for High Pressure and Severe Service applications. The unique design features a fully retained encapsulated O-ring seal with metal to metal backup for long service life.

Features

  • One-Piece Body Design
  • Encapsulated Seal with Metal Backup
  • Self Purging Design prevents leakage
  • Increasing Pressure Increases Sealing Efficiency

Technical Data

  • Minimum Burst Pressure: Greater than 3 times Operating Pressure
  • Leakage:
    • Elastomeric Seals: Zero @ 1.0 Psig (0.07 Bar) to Proof
    • Teflon Seals: Zero @ 75 Psig (5.2 Bar) to Proof
  • Nominal Crack Pressure: 2 – 5 Psig (0.14 – 0.34 Bar)
  • Temperature Rating:
    • Seal Dependent

Materials of Construction

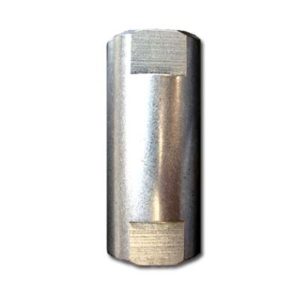

  • Available in Brass, 17-4PH Stainless Steel or 316 Stainless Steel
