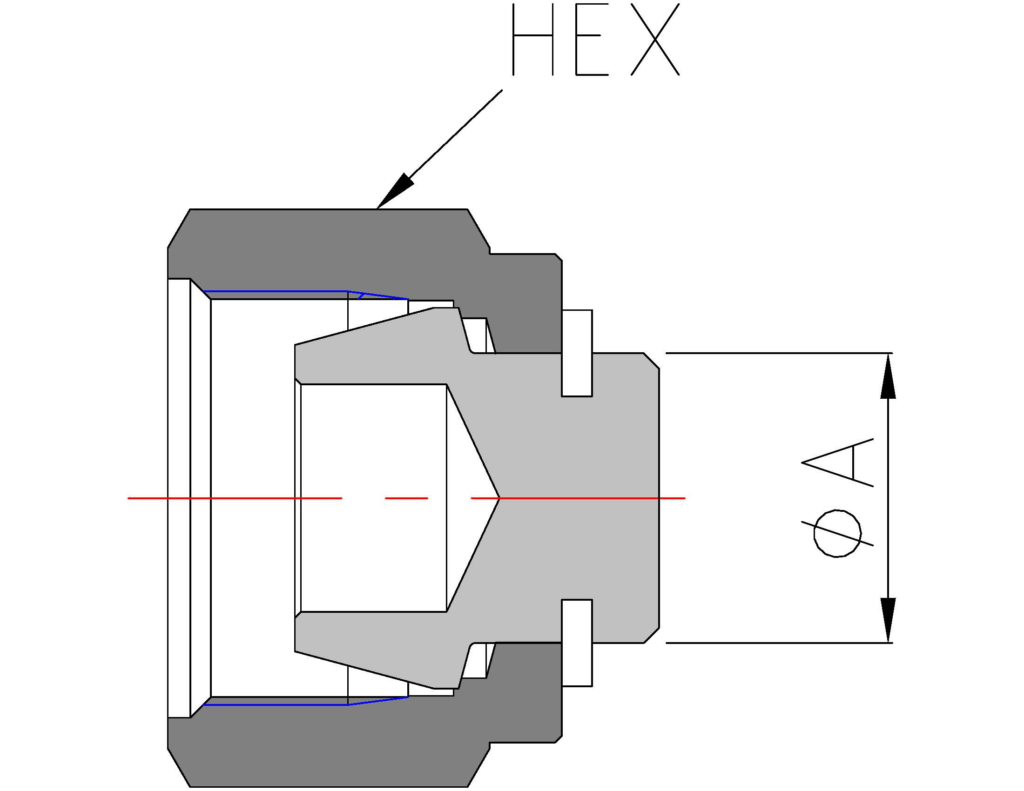

Plug (DBA)
Description
| inch (mm) |
||
| Part No. | ØA | Hex |
| Tube OD | ||
| DBA-1-* | 1/16 (1.59) |
5/16 |
| DBA-2-* | 1/8 (3.18) |
7/16 |
| DBA-3-* | 3/16 (4.76) |
1/2 |
| DBA-4-* | 1/4 (6.35) |
9/16 |
| DBA-5-* | 5/16 (7.94) |
5/8 |
| DBA-6-* | 3/8 (9.53) |
11/16 |
| DBA-8-* | 1/2 (12.7) |
7/8 |
| DBA-10-* | 5/8 (15.88) |
1 |
| DBA-12-* | 3/4 (19.05) |
1-1/8 |
| DBA-14-* | 7/8 (22.23) |
1-1/4 |
| DBA-16-* | 1 (25.4) |
1-1/2 |
*Add suffix SS for 316 stainless steel or B for brass.
*Turn 1/8 from FTP for size 3/16 and under, 1/4 turn from FTP for size 1/4 through 1”.
