Precision Metering Valve (PMV)

Precision Metering Valve (PMV)
Precision Metering Valve (PMV)
Precision Metering Valve (PMV)
Precision Metering Valve (PMV)
Precision Metering Valve (PMV)

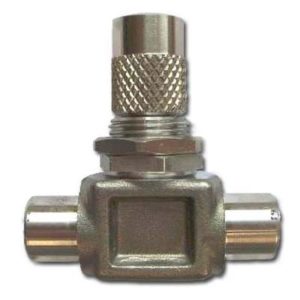

1/8" and 1/4" NPT

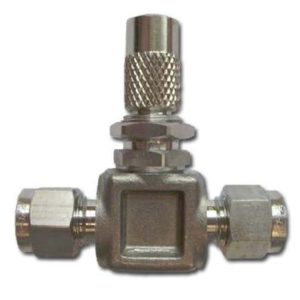

1/8" and 1/4" Dual Ferrule Tube
Vacuum – 1,000 Psig (68.9 Bar)

Description

Series PMV Precision Metering Valves are designed for accurate and repeatable flow control of fluids and gases. Valves feature a one-piece forged body and a screwed bonnet design. Stainless steel 3 degree tapered stem seals bubble tight into an Acetal soft seat. With panel mounting and lockable adjustment standard, these valves offer cost effective solutions for precise metering.

Features

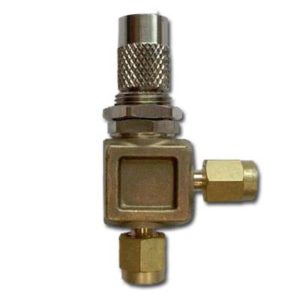

  • Straight or Angle Flow Patterns
  • Forged Body Brass or Stainless Steel Construction
  • NPT or Dual Ferrule Tube Connections
  • Unique Soft Seat Provides Positive Shut Off
  • Wear Compensating Knob Adjustment
  • Locking Screw Prevents Inadvertent Flow Changes
  • Stem Threads are isolated from System Fluid
  • 100% Factory Tested for Leakage

Technical Data

  • Maximum Operating Pressure @ 100º F
    • Brass and Stainless: 1,000 Psig (68.9 Bar)
  • Stem Taper: 3 Degree (included angle)
  • Stem Pitch: 40 Threads per inch
  • Orifice: 0.055” (1.4 mm)
  • Flow Coefficient (Cv): 0.04
  • Panel Mounting
    • Panel Mount Hole: 9/16” (14.3 mm)
    • Max Panel Mount Thickness: 1/8″ (3.3 mm)
  • Factory Preset for zero flow at positive stop with 150 Psig (10.34 Bar)
  • Temperature Rating:
    • -150°F to 180°F (-46°C to 82°C)
      (based on seal selection)
