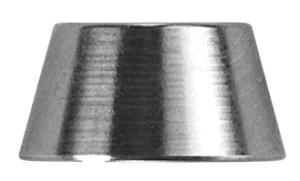

Front Ferrule (DOF)
Front Ferrule (DOF)
Front Ferrule (DOF)
Front Ferrule (DOF)
Description
inch
(mm)

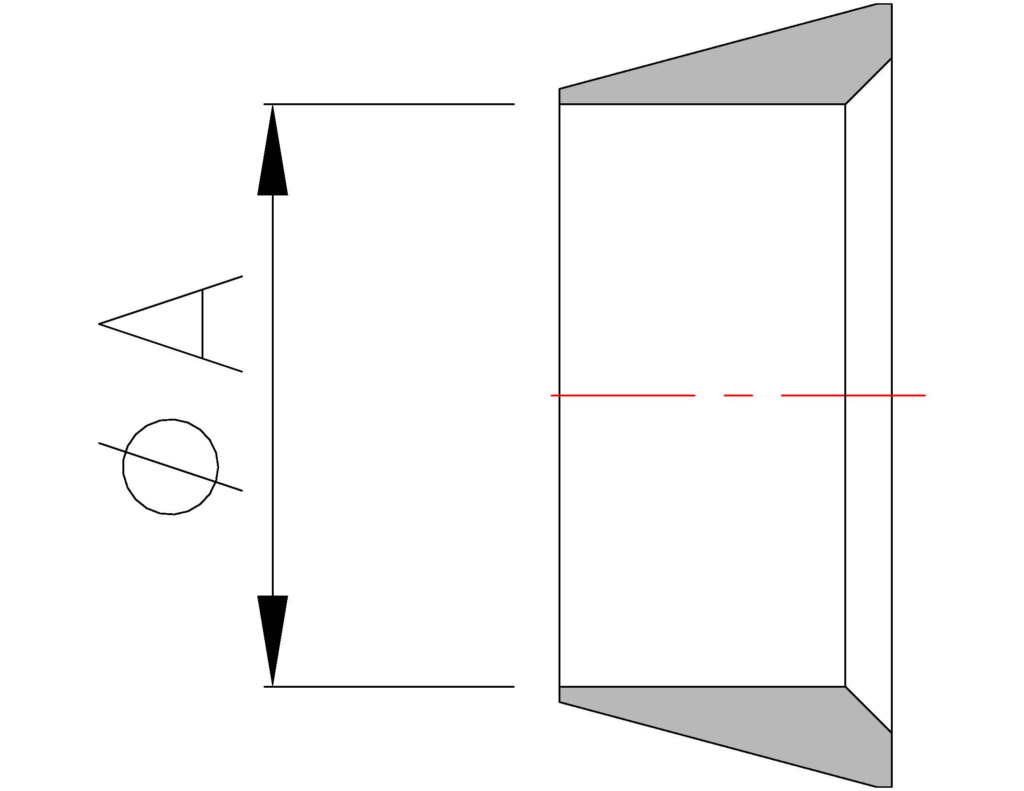

Part No. ØA
Tube OD
DOF-1-* 1/16
(1.59)
DOF-2-* 1/8
(3.18)
DOF-3-* 3/16
(4.76)
DOF-4-* 1/4
(6.35)
DOF-5-* 5/16
(7.94)
DOF-6-* 3/8
(9.53)
DOF-8-* 1/2
(12.7)
DOF-10-* 5/8
(15.88)
DOF-12-* 3/4
(19.05)
DOF-14-* 7/8
(22.23)
DOF-16-* 1
(25.4)

*Add suffix SS for 316 stainless steel or B for brass.
