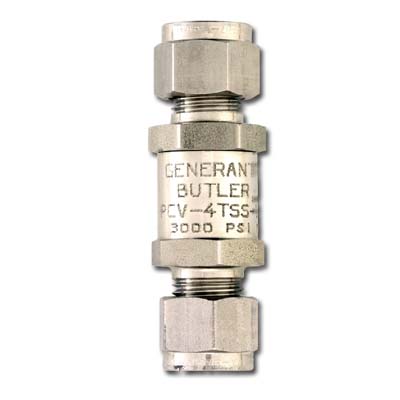

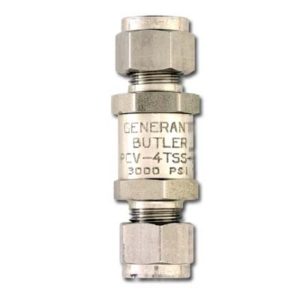

Poppet Check Valve (PCV)
Poppet Check Valve (PCV)
Poppet Check Valve (PCV)

1/8” - 1/2” Dual Ferrule Tube
Female & Male NPT, 1/4" Face Seal
3,000 Psig

Description

Poppet type, zero leak, inline check valve for liquid and gas applications to 3,000 Psig. Fully retained O’ring seal design permits full rated pressure in the checked direction. Offered with fully interchangeable dual ferrule tube or metal to metal face seal connections. A variety of crack pressures and seal materials, combined with a metal to metal positive stop provides long trouble free service life in the most demanding applications.

Features

  • Working Pressures to 3,000 Psig (206 bar)
  • Full Pressure Rating in Check Direction
  • Fully Retained O’Ring Seal
  • Dual Ferrule Tube, Female NPT, Male NPT and Face Seal Connections Available
  • Cracking Pressures from 0.3 to 25 Psig (0.02 – 1.7 bar)
  • 100% Factory tested for crack, leakage and reseat performance

Technical Data

  • Nominal Crack Pressures: 0.3, 1, 10, & 25 Psig (0.02, 0.07, 0.7 & 1.7 bar)
  • Maximum Pressure: 3,000 Psig @ 70°F (206 bar @ 21°C)
  • Temperature Rating:
    • -80°F to 375°F (-62°C to 190°C)
      (based on seal selection)

Materials of Construction

  • Available in Brass or 316 Stainless Steel
