Inline Check Valve (ICV)
Inline Check Valve (ICV)
Inline Check Valve (ICV)

1/8” - 3/4” NPT
Vacuum - 800 Psig

Description

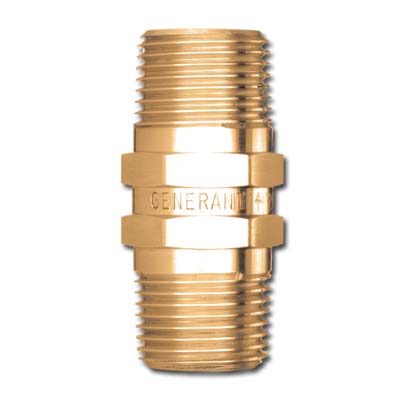

A compact, inline, direct acting poppet check valve suitable for pressure and vacuum applications. Bubble tight sealing is achieved by a line of contact between a precision machined seat and a standard elastomer O-ring with minimum differential pressure, regardless of mounting attitude. Floating poppet and fluted retainer design provides laminar flow. Metal to metal positive stop ensures long service life.

Technical Data

  • Nominal Crack Pressures: .15, 1 & 3 Psig (0.01, 0.07 & 0.21 bar)
  • Proof Pressure: 1200 Psig (83 bar)
  • Operating Pressure Range: Vacuum – 800 Psig (55 bar)
  • Leakage: Zero @ > 0.5 Psig Back Pressure (0.03 bar)
  • Temperature Rating:
    • -80°F to 375°F (-62°C to 190°C)
    • based on seal material

Materials of Construction

  • Available in Brass or 316 Stainless Steel
