High Pressure Instrument Ball Valve (IBV)

High Pressure Instrument Ball Valve (IBV)
High Pressure Instrument Ball Valve (IBV)
High Pressure Instrument Ball Valve (IBV)

1/4” - 3/4" NPT

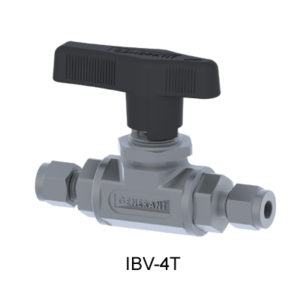

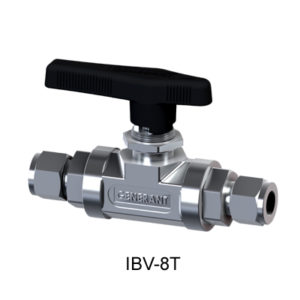

1/4” - 3/4" Dual Ferrule Tube
3/8" and 1/2" O'Ring Face Seal

Description

High Pressure Instrument Ball Valves offer reliable 1/4-turn shutoff for pressures up to 6,000 Psig (413 bar). These valves feature a Micro-Finished Floating Ball design to provide a positive seal in both directions. Series IBV Instrument Ball Valves also feature a “straight-through” flow path to ensure high flows with minimum pressure drop. The valves are designed to operate with a low operation torque while providing a long service life. All valve configurations can be panel mounted.

Features

  • Bi-Directional
  • Straight-Through Flow Path
  • Micro-Finished Floating Ball
  • Large Orifices for High Flow Efficiency
  • Handle Orientation Indicates Flow
  • NPT, O’ring Face Seal, or Dual Ferrule Tube Connections
  • Adjustable Stem Packing for in-line maintenance
  • 100% Factory Tested

Technical Data

  • Pressure Rating: 6,000 Psig (413 Bar) at 100°F (3:1 SF)
    • Per NFPA 52 (2013): 4,750 Psig (328 Bar)
    • Per ASME B31.3 (2012): 4,400 Psig (303 Bar)
  • Temperature Rating: -65° to 200°F (-54° to 93°C)
  • Leakage: < 0.1 SCCM @ 2,100 Psig (145 Bar)
    • 100% Factory Tested for Leakage
    • Note: For a leak-free stem seal at pressures higher than 2,100 PSI or after prolonged use, additional tightening of the stem packing may be required.
