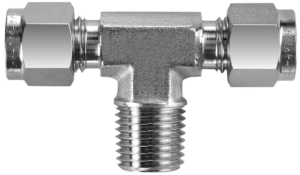

Male NPT Branch Tee (DTN)

Male NPT Branch Tee (DTN)
Male NPT Branch Tee (DTN)
Male NPT Branch Tee (DTN)
Description
inch
(mm)

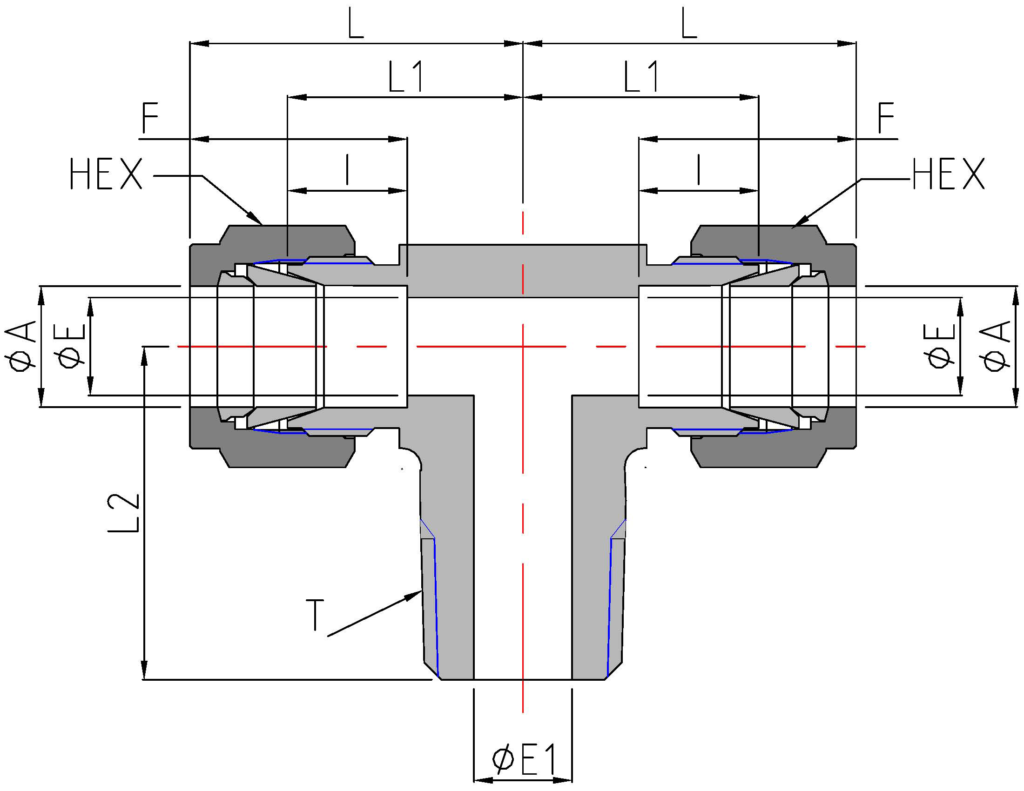

Part No. ØA ØE ØE1 I L L1 L2 Hex Flat F T
Tube OD NPT
DTN-2-2-* 1/8
(3.18)		 0.09
(2.3)		 0.19
(4.8)		 0.25
(6.4)		 0.93
(23.5)		 0.66
(16.8 )		 0.73
(18.5)		 7/16 7/16 0.51
(13.0)		 1/8
DTN-2-4-* 1/8
(3.18)		 0.09
(2.3)		 0.19
(4.8)		 0.25
(6.4)		 0.98
(25.0)		 0.72
(18.3)		 0.94
(24.0)		 7/16 1/2 0.51
(13.0)		 1/4
DTN-3-2-* 3/16
(4.76)		 0.12
(3.0)		 0.19
(4.8)		 0.28
(7.2)		 1.01
(25.7)		 0.75
(19.0)		 0.75
(19.0)		 1/2 1/2 0.54
(13.8)		 1/8
DTN-4-2-* 1/4
(6.35)		 0.19
(4.8)		 0.19
(4.8)		 0.31
(7.9)		 1.08
(27.5)		 0.79
(20.0)		 0.75
(19.0)		 9/16 1/2 0.61
(15.4)		 1/8
DTN-4-4-* 1/4
(6.35)		 0.19
(4.8)		 0.24
(6.0)		 0.31
(7.9)		 1.08
(27.5)		 0.79
(20.0)		 0.94
(24.0)		 9/16 1/2 0.61
(15.4)		 1/4
DTN-4-6-* 1/4
(6.35)		 0.19
(4.8)		 0.37
(9.4)		 0.31
(7.9)		 1.18
(30.0)		 0.89
(22.5)		 1.12
(28.5)		 9/16 11/16 0.61
(15.4)		 3/8
DTN-4-8-* 1/4
(6.35)		 0.19
(4.8)		 0.41
(10.4)		 0.31
(7.9)		 1.26
(32.0)		 0.96
(24.5)		 1.32
(33.5)		 9/16 13/16 0.61
(15.4)		 1/2
DTN-5-2-* 5/16
(7.94)		 0.25
(6.4)		 0.19
(4.8)		 0.35
(8.8)		 1.18
(29.9)		 0.88
(22.4)		 0.81
(20.5)		 5/8 5/8 0.64
(16.3)		 1/8
DTN-5-4-* 5/16
(7.94)		 0.25
(6.4)		 0.28
(7.1)		 0.35
(8.8)		 1.18
(29.9)		 0.88
(22.4)		 1.00
(25.5)		 5/8 5/8 0.64
(16.3)		 1/4
DTN-5-6-* 5/16
(7.94)		 0.25
(6.4)		 0.41
(10.4)		 0.35
(8.8)		 1.24
(31.5)		 0.94
(24.0)		 1.12
(28.5)		 5/8 11/16 0.64
(16.3)		 3/8
DTN-6-2-* 3/8
(9.53)		 0.28
(7.1)		 0.19
(4.8)		 0.37
(9.5)		 1.20
(30.5)		 0.91
(23.0)		 0.81
(20.5)		 11/16 5/8 0.67
(17.0)		 1/8
DTN-6-4-* 3/8
(9.53)		 0.28
(7.1)		 0.28
(7.1)		 0.37
(9.5)		 1.20
(30.5)		 0.91
(23.0)		 1.00
(25.5)		 11/16 5/8 0.67
(17.0)		 1/4
DTN-6-6-* 3/8
(9.53)		 0.28
(7.1)		 0.37
(9.4)		 0.37
(9.5)		 1.24
(31.5)		 0.94
(24.0)		 1.12
(28.5)		 11/16 11/16 0.67
(17.0)		 3/8
DTN-6-8-* 3/8
(9.53)		 0.28
(7.1)		 0.50
(12.7)		 0.37
(9.5)		 1.33
(33.7)		 1.03
(26.2)		 1.26
(32.0)		 11/16 13/16 0.67
(17.0)		 1/2
DTN-8-4-* 1/2
(12.7)		 0.41
(10.4)		 0.28
(7.1)		 0.50
(12.7)		 1.39
(35.3)		 0.98
(25.0)		 1.08
(27.5)		 7/8 13/16 0.91
(23.0)		 1/4
DTN-8-6-* 1/2
(12.7)		 0.41
(10.4)		 0.41
(10.4)		 0.50
(12.7)		 1.39
(35.3)		 0.98
(25.0)		 1.08
(27.5)		 7/8 13/16 0.91
(23.0)		 3/8
DTN-8-8-* 1/2
(12.7)		 0.41
(10.4)		 0.50
(12.7)		 0.50
(12.7)		 1.44
(36.5)		 1.03
(26.2)		 1.32
(33.5)		 7/8 13/16 0.91
(23.0)		 1/2
DTN-8-12-* 1/2
(12.7)		 0.41
(10.4)		 0.72
(18.3)		 0.50
(12.7)		 1.52
(38.5)		 1.11
(28.2)		 1.40
(35.5)		 7/8 1-1/16 0.91
(23.0)		 3/4
DTN-10-8-* 5/8
(15.88)		 0.50
(12.7)		 0.50
(12.7)		 0.56
(14.3)		 1.47
(37.3)		 1.06
(27.0)		 1.34
(34.0)		 1 15/16 0.97
(24.6)		 1/2
DTN-12-4-* 3/4
(19.05)		 0.62
(15.8)		 0.28
(7.1)		 0.56
(14.3)		 1.52
(38.5)		 1.11
(28.2)		 1.20
(30.5)		 1-1/8 1-1/16 0.97
(24.6)		 1/4
DTN-12-6-* 3/4
(19.05)		 0.62
(15.8)		 0.37
(9.4)		 0.56
(14.3)		 1.52
(38.5)		 1.11
(28.2)		 1.26
(32.0)		 1-1/8 1-1/16 0.97
(24.6)		 3/8
DTN-12-8-* 3/4
(19.05)		 0.62
(15.8)		 0.50
(12.7)		 0.56
(14.3)		 1.52
(38.5)		 1.11
(28.2)		 1.40
(35.5)		 1-1/8 1-1/16 0.97
(24.6)		 1/2
DTN-12-12-* 3/4
(19.05)		 0.62
(15.8)		 0.72
(18.3)		 0.56
(14.3)		 1.52
(38.5)		 1.11
(28.2)		 1.40
(35.5)		 1-1/8 1-1/16 0.97
(24.6)		 3/4
DTN-12-16-* 3/4
(19.05)		 0.62
(15.8)		 0.89
(22.5)		 0.56
(14.3)		 1.66
(42.1)		 1.25
(31.8)		 1.84
(46.7)		 1-1/8 1-5/16 0.97
(24.6)		 1
DTN-14-12-* 7/8
(22.23)		 0.72
(18.3)		 0.72
(18.3)		 0.63
(15.9)		 1.68
(42.7)		 1.28
(32.5)		 1.65
(42.0)		 1-1/4 1-1/4 1.03
(26.1)		 3/4
DTN-16-6-* 1
(25.4)		 0.89
(22.5)		 0.41
(10.4)		 0.75
(19.1)		 1.81
(45.9)		 1.31
(33.3)		 1.50
(38.0)		 1-1/2 1-5/16 1.24
(31.6)		 3/8
DTN-16-8-* 1
(25.4)		 0.89
(22.5)		 0.50
(12.7)		 0.75
(19.1)		 1.81
(45.9)		 1.31
(33.3)		 1.65
(42.0)		 1-1/2 1-5/16 1.24
(31.6)		 1/2
DTN-16-12-* 1
(25.4)		 0.89
(22.5)		 0.72
(18.3)		 0.75
(19.1)		 1.81
(45.9)		 1.31
(33.3)		 1.65
(42.0)		 1-1/2 1-5/16 1.24
(31.6)		 3/4
DTN-16-16-* 1
(25.4)		 0.89
(22.5)		 0.89
(22.5)		 0.75
(19.1)		 1.81
(45.9)		 1.31
(33.3)		 1.84
(46.7)		 1-1/2 1-5/16 1.24
(31.6)		 1

*Add suffix SS for 316 stainless steel or B for brass.
ISO thread is available.
