Male NPT Connector (DCT)

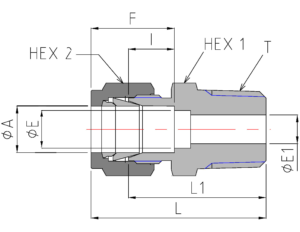

Description
| inch (mm) |
||||||||||
| Part No. | ØA | ØE | ØE1 | L | I | L1 | F | Hex 1 | Hex 2 | T |
| Tube OD | NPT | |||||||||
| DCT-1-1-* | 1/16 (1.59) |
0.05 (1.3) |
0.12 (3.0) |
0.94 (24.0) |
0.19 (4.9) |
0.79 (20.0) |
0.35 (8.9) |
5/16 | 5/16 | 1/16 |
| DCT-1-2-* | 1/16 (1.59) |
0.05 (1.3) |
0.19 (4.8) |
1.00 (25.5) |
0.19 (4.9) |
0.85 (21.5) |
0.35 (8.9) |
7/16 | 5/16 | 1/8 |
| DCT-1-4-* | 1/16 (1.59) |
0.05 (1.3) |
0.28 (7.1) |
1.22 (30.9) |
0.19 (4.9) |
1.06 (26.9) |
0.35 (8.9) |
9/16 | 5/16 | 1/4 |
| DCT-2-1-* | 1/8 (3.18) |
0.09 (2.3) |
0.12 (3.0) |
1.17 (29.8) |
0.25 (6.4) |
0.91 (23.1) |
0.51 (13.0) |
7/16 | 7/16 | 1/16 |
| DCT-2-2-* | 1/8 (3.18) |
0.09 (2.3) |
0.19 (4.8) |
1.17 (29.8) |
0.25 (6.4) |
0.91 (23.1) |
0.51 (13.0) |
7/16 | 7/16 | 1/8 |
| DCT-2-4-* | 1/8 (3.18) |
0.09 (2.3) |
0.28 (7.1) |
1.39 (35.2) |
0.25 (6.4) |
1.12 (28.5) |
0.51 (13.0) |
9/16 | 7/16 | 1/4 |
| DCT-2-6-* | 1/8 (3.18) |
0.09 (2.3) |
0.41 (10.4) |
1.42 (36.1) |
0.25 (6.4) |
1.16 (29.4) |
0.51 (13.0) |
11/16 | 7/16 | 3/8 |
| DCT-2-8-* | 1/8 (3.18) |
0.09 (2.3) |
0.50 (12.7) |
1.64 (41.7) |
0.25 (6.4) |
1.38 (35.0) |
0.51 (13.0) |
7/8 | 7/16 | 1/2 |
| DCT-3-1-* | 3/16 (4.76) |
0.12 (3.0) |
0.12 (3.0) |
1.21 (30.7) |
0.28 (7.2) |
0.94 (24.0) |
0.54 (13.8) |
7/16 | 1/2 | 1/16 |
| DCT-3-2-* | 3/16 (4.76) |
0.12 (3.0) |
0.12 (3.0) |
1.21 (30.7) |
0.28 (7.2) |
0.94 (24.0) |
0.54 (13.8) |
7/16 | 1/2 | 1/8 |
| DCT-3-4-* | 3/16 (4.76) |
0.12 (3.0) |
0.12 (3.0) |
1.43 (36.2) |
0.28 (7.2) |
1.16 (29.5) |
0.54 (13.8) |
9/16 | 1/2 | 1/4 |
| DCT-3-6-* | 3/16 (4.76) |
0.12 (3.0) |
0.12 (3.0) |
1.44 (36.7) |
0.28 (7.2) |
1.18 (30.0) |
0.54 (13.8) |
11/16 | 1/2 | 3/8 |
| DCT-3-8-* | 3/16 (4.76) |
0.12 (3.0) |
0.50 (12.7) |
1.67 (42.5) |
0.28 (7.2) |
1.41 (35.8) |
0.54 (13.8) |
7/8 | 1/2 | 1/2 |
| DCT-4-1-* | 1/4 (6.35) |
0.19 (4.8) |
0.12 (3.0) |
1.30 (32.9) |
0.31 (7.9) |
1.00 (25.4) |
0.61 (15.4) |
1/2 | 9/16 | 1/16 |
| DCT-4-2-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.30 (32.9) |
0.31 (7.9) |
1.00 (25.4) |
0.61 (15.4) |
1/2 | 9/16 | 1/8 |
| DCT-4-4-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.49 (37.8) |
0.31 (7.9) |
1.19 (30.3) |
0.61 (15.4) |
9/16 | 9/16 | 1/4 |
| DCT-4-6-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.52 (38.5) |
0.31 (7.9) |
1.22 (31.0) |
0.61 (15.4) |
11/16 | 9/16 | 3/8 |
| DCT-4-8-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.74 (44.1) |
0.31 (7.9) |
1.44 (36.6) |
0.61 (15.4) |
7/8 | 9/16 | 1/2 |
| DCT-4-12-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.77 (44.9) |
0.31 (7.9) |
1.47 (37.4) |
0.61 (15.4) |
1-1/16 | 9/16 | 3/4 |
| DCT-4-16-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
2.11 (53.5) |
0.31 (7.9) |
1.81 (46.0) |
0.61 (15.4) |
1-3/8 | 9/16 | 1 |
| DCT-5-2-* | 5/16 (7.94) |
0.25 (6.4) |
0.19 (4.8) |
1.35 (34.2) |
0.35 (8.8) |
1.05 (26.7) |
0.64 (16.3) |
9/16 | 5/8 | 1/8 |
| DCT-5-4-* | 5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
1.53 (38.8) |
0.35 (8.8) |
1.23 (31.3) |
0.64 (16.3) |
9/16 | 5/8 | 1/4 |
| DCT-5-6-* | 5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
1.55 (39.3) |
0.35 (8.8) |
1.25 (31.8) |
0.64 (16.3) |
11/16 | 5/8 | 3/8 |
| DCT-5-8-* | 5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
1.76 (44.8) |
0.35 (8.8) |
1.47 (37.3) |
0.64 (16.3) |
7/8 | 5/8 | 1/2 |
| DCT-5-12-* | 5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
1.80 (45.7) |
0.35 (8.8) |
1.50 (38.2) |
0.64 (16.3) |
1-1/16 | 5/8 | 3/4 |
| DCT-6-2-* | 3/8 (9.53) |
0.28 (7.1) |
0.19 (4.8) |
1.39 (35.2) |
0.37 (9.5) |
1.09 (27.7) |
0.67 (17.0) |
5/8 | 11/16 | 1/8 |
| DCT-6-4-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.57 (40.0) |
0.37 (9.5) |
1.28 (32.5) |
0.67 (17.0) |
5/8 | 11/16 | 1/4 |
| DCT-6-6-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.57 (40.0) |
0.37 (9.5) |
1.28 (32.5) |
0.67 (17.0) |
11/16 | 11/16 | 3/8 |
| DCT-6-8-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.80 (45.6) |
0.37 (9.5) |
1.50 (38.1) |
0.67 (17.0) |
7/8 | 11/16 | 1/2 |
| DCT-6-12-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.83 (46.5) |
0.37 (9.5) |
1.54 (39.0) |
0.67 (17.0) |
1-1/16 | 11/16 | 3/4 |
| DCT-6-16-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
2.17 (55.1) |
0.37 (9.5) |
1.87 (47.6) |
0.67 (17.0) |
1-3/8 | 11/16 | 1 |
| DCT-8-2-* | 1/2 (12.7) |
0.41 (10.4) |
0.19 (4.8) |
1.52 (38.7) |
0.50 (12.7) |
1.12 (28.4) |
0.91 (23.0) |
13/16 | 7/8 | 1/8 |
| DCT-8-4-* | 1/2 (12.7) |
0.41 (10.4) |
0.28 (7.1) |
1.72 (43.6) |
0.50 (12.7) |
1.31 (33.3) |
0.91 (23.0) |
13/16 | 7/8 | 1/4 |
| DCT-8-6-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.72 (43.6) |
0.50 (12.7) |
1.31 (33.3) |
0.91 (23.0) |
13/16 | 7/8 | 3/8 |
| DCT-8-8-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.91 (48.4) |
0.50 (12.7) |
1.50 (38.1) |
0.91 (23.0) |
7/8 | 7/8 | 1/2 |
| DCT-8-12-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.94 (49.3) |
0.50 (12.7) |
1.54 (39.0) |
0.91 (23.0) |
1-1/16 | 7/8 | 3/4 |
| DCT-8-16-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
2.28 (57.9) |
0.50 (12.7) |
1.87 (47.6) |
0.91 (23.0) |
1-3/8 | 7/8 | 1 |
| DCT-10-4-* | 5/8 (15.88) |
0.50 (12.7) |
0.28 (7.1) |
1.74 (44.3) |
0.56 (14.3) |
1.34 (34.0) |
0.97 (24.6) |
15/16 | 1 | 1/4 |
| DCT-10-6-* | 5/8 (15.88) |
0.50 (12.7) |
0.41 (10.4) |
1.74 (44.3) |
0.56 (14.3) |
1.34 (34.0) |
0.97 (24.6) |
15/16 | 1 | 3/8 |
| DCT-10-8-* | 5/8 (15.88) |
0.50 (12.7) |
0.50 (12.7) |
1.94 (49.3) |
0.56 (14.3) |
1.54 (39.0) |
0.97 (24.6) |
15/16 | 1 | 1/2 |
| DCT-10-12-* | 5/8 (15.88) |
0.50 (12.7) |
0.50 (12.7) |
1.94 (49.2) |
0.56 (14.3) |
1.53 (38.9) |
0.97 (24.6) |
1-1/16 | 1 | 3/4 |
| DCT-12-4-* | 3/4 (19.05) |
0.62 (15.8) |
0.28 (7.1) |
1.80 (45.7) |
0.56 (14.3) |
1.39 (35.4) |
0.97 (24.6) |
1-1/16 | 1-1/8 | 1/4 |
| DCT-12-6-* | 3/4 (19.05) |
0.62 (15.8) |
0.41 (10.4) |
1.80 (45.7) |
0.56 (14.3) |
1.39 (35.4) |
0.97 (24.6) |
1-1/16 | 1-1/8 | 3/8 |
| DCT-12-8-* | 3/4 (19.05) |
0.62 (15.8) |
0.50 (12.7) |
2.00 (50.7) |
0.56 (14.3) |
1.59 (40.4) |
0.97 (24.6) |
1-1/16 | 1-1/8 | 1/2 |
| DCT-12-12-* | 3/4 (19.05) |
0.62 (15.8) |
0.62 (15.8) |
2.00 (50.7) |
0.56 (14.3) |
1.59 (40.4) |
0.97 (24.6) |
1-1/16 | 1-1/8 | 3/4 |
| DCT-12-16-* | 3/4 (19.05) |
0.62 (15.8) |
0.62 (15.8) |
2.28 (57.9) |
0.56 (14.3) |
1.87 (47.6) |
0.97 (24.6) |
1-3/8 | 1-1/8 | 1 |
| DCT-14-8-* | 7/8 (22.23) |
0.72 (18.3) |
0.50 (12.7) |
1.99 (50.6) |
0.63 (15.9) |
1.59 (40.4) |
1.03 (26.1) |
1-3/16 | 1-1/4 | 1/2 |
| DCT-14-12-* | 7/8 (22.23) |
0.72 (18.3) |
0.72 (18.3) |
1.99 (50.6) |
0.63 (15.9) |
1.59 (40.4) |
1.03 (26.1) |
1-3/16 | 1-1/4 | 3/4 |
| DCT-14-16-* | 7/8 (22.23) |
0.72 (18.3) |
0.72 (18.3) |
2.28 (57.8) |
0.63 (15.9) |
1.87 (47.6) |
1.03 (26.1) |
1-3/8 | 1-1/4 | 1 |
| DCT-16-6-* | 1 (25.4) |
0.89 (22.5) |
0.41 (10.4) |
2.11 (53.6) |
0.75 (19.1) |
1.61 (41.0) |
1.24 (31.6) |
1-3/8 | 1-1/2 | 3/8 |
| DCT-16-8-* | 1 (25.4) |
0.89 (22.5) |
0.50 (12.7) |
2.27 (57.6) |
0.75 (19.1) |
1.77 (45.0) |
1.24 (31.6) |
1-3/8 | 1-1/2 | 1/2 |
| DCT-16-12-* | 1 (25.4) |
0.89 (22.5) |
0.72 (18.3) |
2.27 (57.6) |
0.75 (19.1) |
1.77 (45.0) |
1.24 (31.6) |
1-3/8 | 1-1/2 | 3/4 |
| DCT-16-16-* | 1 (25.4) |
0.89 (22.5) |
0.89 (22.5) |
2.46 (62.6) |
0.75 (19.1) |
1.97 (50.0) |
1.24 (31.6) |
1-3/8 | 1-1/2 | 1 |
*Add suffix SS for 316 stainless steel or B for brass. ISO
thread is available. Add R before thread size. Example,
DCT-4-R4-SS
