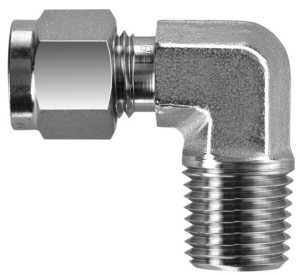

Male NPT Elbow (DLN)

Male NPT Elbow (DLN)
Male NPT Elbow (DLN)
Male NPT Elbow (DLN)
Description
inch
(mm)

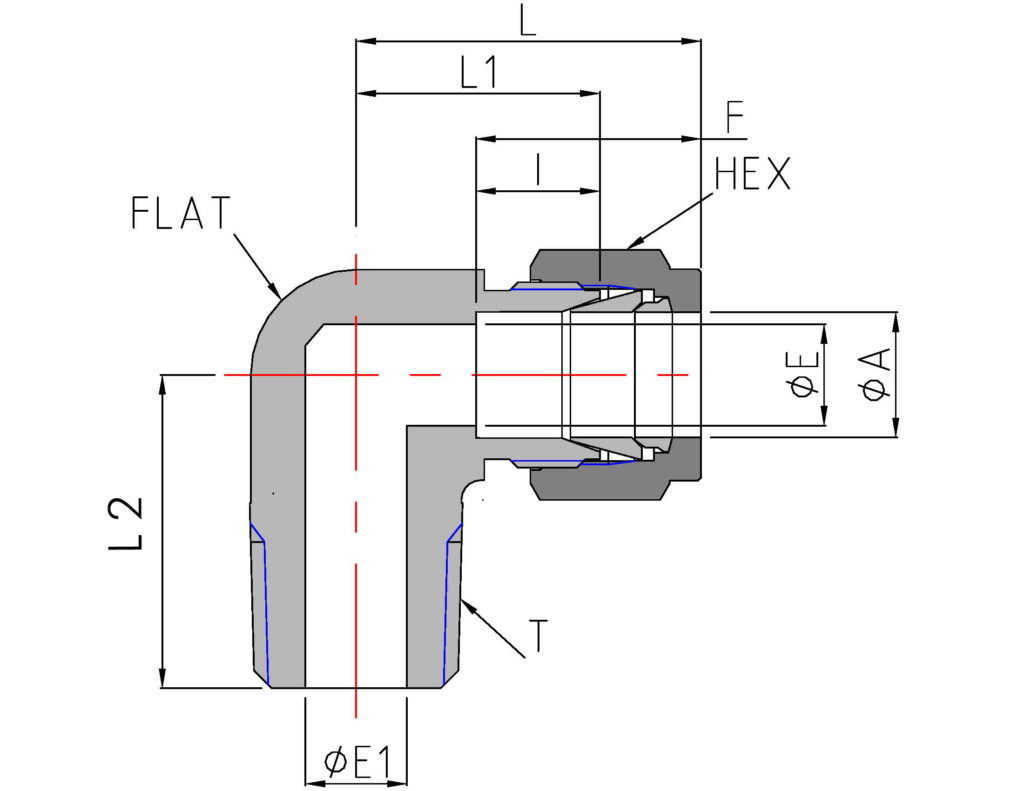

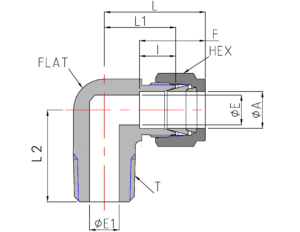

Part No. ØA ØE ØE1 L I L1 L2 F Flat Hex T
Tube OD NPT
DLN-1-1-* 1/16
(1.59)		 0.05
(1.3)		 0.12
(3.0)		 0.72
(18.2)		 0.19
(4.9)		 0.56
(14.2)		 0.73
(18.5)		 0.35
(8.9)		 7/16 5/16 1/16
DLN-1-2-* 1/16
(1.59)		 0.05
(1.3)		 0.19
(4.8)		 0.72
(18.2)		 0.19
(4.9)		 0.56
(14.2)		 0.73
(18.5)		 0.35
(8.9)		 7/16 5/16 1/8
DLN-2-1-* 1/8
(3.18)		 0.09
(2.3)		 0.12
(3.0)		 0.93
(23.5)		 0.25
(6.4)		 0.66
(16.8 )		 0.73
(18.5)		 0.51
(13.0)		 7/16 7/16 1/16
DLN-2-2-* 1/8
(3.18)		 0.09
(2.3)		 0.19
(4.8)		 0.93
(23.5)		 0.25
(6.4)		 0.66
(16.8 )		 0.73
(18.5)		 0.51
(13.0)		 7/16 7/16 1/8
DLN-2-4-* 1/8
(3.18)		 0.09
(2.3)		 0.19
(4.8)		 0.98
(25.0)		 0.25
(6.4)		 0.72
(18.3)		 0.94
(24.0)		 0.51
(13.0)		 1/2 7/16 1/4
DLN-2-6-* 1/8
(3.18)		 0.09
(2.3)		 0.37
(9.4)		 1.15
(29.2)		 0.25
(6.4)		 0.89
(22.5)		 1.12
(28.5)		 0.51
(13.0)		 11/16 7/16 3/8
DLN-2-8-* 1/8
(3.18)		 0.09
(2.3)		 0.28
(7.1)		 1.13
(28.7)		 0.25
(6.4)		 0.89
(22.5)		 1.32
(33.5)		 0.51
(13.0)		 13/16 7/16 1/2
DLN-3-2-* 3/16
(4.76)		 0.12
(3.0)		 0.19
(4.8)		 1.01
(25.7)		 0.28
(7.2)		 0.75
(19.0)		 0.75
(19.0)		 0.54
(13.8)		 1/2 1/2 1/8
DLN-3-4-* 3/16
(4.76)		 0.12
(3.0)		 0.24
(6.0)		 1.01
(25.7)		 0.28
(7.2)		 0.75
(19.0)		 0.94
(24.0)		 0.54
(13.8)		 1/2 1/2 1/4
DLN-4-1-* 1/4
(6.35)		 0.19
(4.8)		 0.12
(3.0)		 1.08
(27.5)		 0.31
(7.9)		 0.79
(20.0)		 0.75
(19.0)		 0.61
(15.4)		 1/2 9/16 1/16
DLN-4-2-* 1/4
(6.35)		 0.19
(4.8)		 0.19
(4.8)		 1.08
(27.5)		 0.31
(7.9)		 0.79
(20.0)		 0.75
(19.0)		 0.61
(15.4)		 1/2 9/16 1/8
DLN-4-4-* 1/4
(6.35)		 0.19
(4.8)		 0.24
(6.0)		 1.08
(27.5)		 0.31
(7.9)		 0.79
(20.0)		 0.94
(24.0)		 0.61
(15.4)		 1/2 9/16 1/4
DLN-4-6-* 1/4
(6.35)		 0.19
(4.8)		 0.37
(9.4)		 1.18
(30.0)		 0.31
(7.9)		 0.89
(22.5)		 1.12
(28.5)		 0.61
(15.4)		 11/16 9/16 3/8
DLN-4-8-* 1/4
(6.35)		 0.19
(4.8)		 0.41
(10.4)		 1.26
(32.0)		 0.31
(7.9)		 0.96
(24.5)		 1.32
(33.5)		 0.61
(15.4)		 13/16 9/16 1/2
DLN-4-12-* 1/4
(6.35)		 0.19

(4.8)		 0.50
(12.7)		 1.41
(35.7)		 0.31
(7.9)		 1.11
(28.2)		 1.40
(35.5)		 0.61
(15.4)		 1-1/16 9/16 3/4
DLN-5-2-* 5/16
(7.94)		 0.25
(6.4)		 0.19
(4.8)		 1.18
(29.9)		 0.35
(8.8)		 0.88
(22.4)		 0.81
(20.5)		 0.64
(16.3)		 5/8 5/8 1/8
DLN-5-4-* 5/16
(7.94)		 0.25
(6.4)		 0.28
(7.1)		 1.18
(29.9)		 0.35
(8.8)		 0.88
(22.4)		 1.00
(25.5)		 0.64
(16.3)		 5/8 5/8 1/4
DLN-5-6-* 5/16
(7.94)		 0.25
(6.4)		 0.41
(10.4)		 1.24
(31.5)		 0.35
(8.8)		 0.94
(24.0)		 1.12
(28.5)		 0.64
(16.3)		 11/16 5/8 3/8
DLN-6-2-* 3/8
(9.53)		 0.28
(7.1)		 0.19
(4.8)		 1.20
(30.5)		 0.37
(9.5)		 0.91
(23.0)		 0.81
(20.5)		 0.67
(17.0)		 5/8 11/16 1/8
DLN-6-4-* 3/8
(9.53)		 0.28
(7.1)		 0.24
(6.0)		 1.20
(30.5)		 0.37
(9.5)		 0.91
(23.0)		 1.00
(25.5)		 0.67
(17.0)		 5/8 11/16 1/4
DLN-6-6-* 3/8
(9.53)		 0.28
(7.1)		 0.41
(10.4)		 1.24
(31.5)		 0.37
(9.5)		 0.94
(24.0)		 1.12
(28.5)		 0.67
(17.0)		 11/16 11/16 3/8
DLN-6-8-* 3/8
(9.53)		 0.28
(7.1)		 0.50
(12.7)		 1.33
(33.7)		 0.37
(9.5)		 1.03
(26.2)		 1.26
(32.0)		 0.67
(17.0)		 13/16 11/16 1/2
DLN-6-12-* 3/8
(9.53)		 0.28
(7.1)		 0.72
(18.3)		 1.41
(35.7)		 0.37
(9.5)		 1.11
(28.2)		 1.40
(35.5)		 0.67
(17.0)		 1-1/16 11/16 3/4
DLN-8-2-* 1/2
(12.7)		 0.41
(10.4)		 0.19
(4.8)		 1.39
(35.3)		 0.50
(12.7)		 0.98
(25.0)		 0.93
(23.5)		 0.91
(23.0)		 13/16 7/8 1/8
DLN-8-4-* 1/2
(12.7)		 0.41
(10.4)		 0.28
(7.1)		 1.39
(35.3)		 0.50
(12.7)		 0.98
(25.0)		 1.08
(27.5)		 0.91
(23.0)		 13/16 7/8 1/4
DLN-8-6-* 1/2
(12.7)		 0.41
(10.4)		 0.41
(10.4)		 1.39
(35.3)		 0.50
(12.7)		 0.98
(25.0)		 1.08
(27.5)		 0.91
(23.0)		 13/16 7/8 3/8
DLN-8-8-* 1/2
(12.7)		 0.41
(10.4)		 0.50
(12.7)		 1.44
(36.5)		 0.50
(12.7)		 1.03
(26.2)		 1.32
(33.5)		 0.91
(23.0)		 13/16 7/8 1/2
DLN-8-12-* 1/2
(12.7)		 0.41
(10.4)		 0.72
(18.3)		 1.52
(38.5)		 0.50
(12.7)		 1.11
(28.2)		 1.40
(35.5)		 0.91
(23.0)		 1-1/16 7/8 3/4
DLN-8-16-* 1/2
(12.7)		 0.41
(10.4)		 0.89
(22.5)		 1.66
(42.1)		 0.50
(12.7)		 1.25
(31.8)		 1.84
(46.7)		 0.91
(23.0)		 1-5/16 7/8 1
DLN-10-4-* 5/8
(15.88)		 0.50
(12.7)		 0.28
(7.1)		 1.47
(37.3)		 0.56
(14.3)		 1.06
(27.0)		 1.16
(29.5)		 0.97
(24.6)		 15/16 1 1/4
DLN-10-6-* 5/8
(15.88)		 0.50
(12.7)		 0.41
(10.4)		 1.47
(37.3)		 0.56
(14.3)		 1.06
(27.0)		 1.16
(29.5)		 0.97
(24.6)		 15/16 1 3/8
DLN-10-8-* 5/8
(15.88)		 0.50
(12.7)		 0.50
(12.7)		 1.47
(37.3)		 0.56
(14.3)		 1.06
(27.0)		 1.34
(34.0)		 0.97
(24.6)		 15/16 1 1/2
DLN-10-12-* 5/8
(15.88)		 0.50
(12.7)		 0.72
(18.3)		 1.52
(38.5)		 0.56
(14.3)		 1.11
(28.2)		 1.40
(35.5)		 0.97
(24.6)		 1-1/16 1 3/4
DLN-12-4-* 3/4
(19.05)		 0.62
(15.8)		 0.28
(7.1)		 1.52
(38.5)		 0.56
(14.3)		 1.11
(28.2)		 1.20
(30.5)		 0.97
(24.6)		 1-1/16 1-1/8 1/4
DLN-12-6-* 3/4
(19.05)		 0.62
(15.8)		 0.41
(10.4)		 1.52
(38.5)		 0.56
(14.3)		 1.11
(28.2)		 1.20
(30.5)		 0.97
(24.6)		 1-1/16 1-1/8 3/8
DLN-12-8-* 3/4
(19.05)		 0.62
(15.8)		 0.50
(12.7)		 1.52
(38.5)		 0.56
(14.3)		 1.11
(28.2)		 1.40
(35.5)		 0.97
(24.6)		 1-1/16 1-1/8 1/2
DLN-12-12-* 3/4
(19.05)		 0.62
(15.8)		 0.72
(18.3)		 1.52
(38.5)		 0.56
(14.3)		 1.11
(28.2)		 1.40
(35.5)		 0.97
(24.6)		 1-1/16 1-1/8 3/4
DLN-12-16-* 3/4
(19.05)		 0.62
(15.8)		 0.89
(22.5)		 1.66
(42.1)		 0.56
(14.3)		 1.25
(31.8)		 1.84
(46.7)		 0.97
(24.6)		 1-5/16 1-1/8 1
DLN-14-12-* 7/8
(22.23)		 0.72
(18.3)		 0.72
(18.3)		 1.68
(42.7)		 0.63
(15.9)		 1.28
(32.5)		 1.65
(42.0)		 1.03
(26.1)		 1-1/4 1-1/4 3/4
DLN-16-8-* 1
(25.4)		 0.89
(22.5)		 0.50
(12.7)		 1.81
(45.9)		 0.75
(19.1)		 1.31
(33.3)		 1.65
(42.0)		 1.24
(31.6)		 1-5/16 1-1/2 1/2
DLN-16-12-* 1
(25.4)		 0.89
(22.5)		 0.72
(18.3)		 1.81
(45.9)		 0.75
(19.1)		 1.31
(33.3)		 1.65
(42.0)		 1.24
(31.6)		 1-5/16 1-1/2 3/4
DLN-16-16-* 1
(25.4)		 0.89
(22.5)		 0.89
(22.5)		 1.81
(45.9)		 0.75
(19.1)		 1.31
(33.3)		 1.84
(46.7)		 1.24
(31.6)		 1-5/16 1-1/2 1

*Add suffix SS for 316 stainless steel or B for brass. ISO thread is available.
