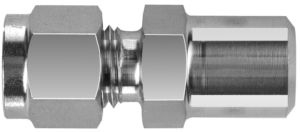

Male Pipe Weld Connector (DCB)

Male Pipe Weld Connector (DCB)
Male Pipe Weld Connector (DCB)
Male Pipe Weld Connector (DCB)
Description
inch
(mm)
Part No ØA ØB ØE1 ØE2 L I L2 L1 F Hex 1 Hex 2
Tube OD Pipe
Nominal
DCB-2-2-* 1/8
(3.18)		 1/8
(10.3)		 0.09
(2.3)		 0.22
(5.5)		 1.17
(29.8)		 0.25
(6.4)		 0.38
(9.7)		 0.91
(23.1)		 0.51
(13.0)		 7/16 7/16
DCB-3-2-* 3/16
(4.76)		 1/8
(10.3)		 0.12
(3.0)		 0.22
(5.5)		 1.22
(31.1)		 0.28
(7.2)		 0.38
(9.7)		 0.96
(24.4)		 0.54
(13.8)		 7/16 1/2
DCB-4-2-* 1/4
(6.35)		 1/8
(10.3)		 0.19
(4.8)		 0.22
(5.5)		 1.31
(33.2)		 0.31
(7.9)		 0.38
(9.7)		 1.01
(25.7)		 0.61
(15.4)		 1/2 9/16
DCB-4-4-* 1/4
(6.35)		 1/4
(13.7)		 0.19
(4.8)		 0.30
(7.7)		 1.49
(37.8)		 0.31
(7.9)		 0.56
(14.2)		 1.19
(30.3)		 0.61
(15.4)		 9/16 9/16
DCB-4-6-* 1/4
(6.35)		 3/8
(17.0)		 0.19
(4.8)		 0.41
(10.4)		 1.52
(38.7)		 0.31
(7.9)		 0.56
(14.2)		 1.23
(31.2)		 0.61
(15.4)		 11/16 9/16
DCB-4-8-* 1/4
(6.35)		 1/2
(21.3)		 0.19
(4.8)		 0.55
(13.9)		 1.74
(44.2)		 0.31
(7.9)		 0.75
(19.1)		 1.44
(36.7)		 0.61
(15.4)		 7/8 9/16
DCB-6-4-* 3/8
(9.53)		 1/4
(13.7)		 0.28
(7.1)		 0.30
(7.7)		 1.57
(40.0)		 0.37
(9.5)		 0.56
(14.2)		 1.28
(32.5)		 0.67
(17.0)		 5/8 11/16
DCB-6-6-* 3/8
(9.53)		 3/8
(17.0)		 0.28
(7.1)		 0.41
(10.4)		 1.57
(40.0)		 0.37
(9.5)		 0.56
(14.2)		 1.28
(32.5)		 0.67
(17.0)		 11/16 11/16
DCB-6-8-* 3/8
(9.53)		 1/2
(21.3)		 0.28
(7.1)		 0.55
(13.9)		 1.80
(45.6)		 0.37
(9.5)		 0.75
(19.1)		 1.50
(38.1)		 0.67
(17.0)		 7/8 11/16
DCB-8-4-* 1/2
(12.7)		 1/4
(13.7)		 0.41
(10.4)		 0.30
(7.7)		 1.72
(43.6)		 0.50
(12.7)		 0.56
(14.2)		 1.31
(33.3)		 0.91
(23.0)		 13/16 7/8
DCB-8-6-* 1/2
(12.7)		 3/8
(17.0)		 0.41
(10.4)		 0.41
(10.4)		 1.72
(43.6)		 0.50
(12.7)		 0.56
(14.2)		 1.31
(33.3)		 0.91
(23.0)		 13/16 7/8
DCB-8-8-* 1/2
(12.7)		 1/2
(21.3)		 0.41
(10.4)		 0.55
(13.9)		 1.91
(48.4)		 0.50
(12.7)		 0.75
(19.1)		 1.50
(38.1)		 0.91
(23.0)		 7/8 7/8
DCB-8-12-* 1/2
(12.7)		 3/4
(26.5)		 0.41
(10.4)		 0.74
(18.8)		 2.00
(50.9)		 0.50
(12.7)		 0.75
(19.1)		 1.60
(40.6)		 0.91
(23.0)		 1-1/16 7/8
DCB-8-16-* 1/2
(12.7)		 1
(33.4)		 0.41
(10.4)		 0.96
(24.3)		 2.26
(57.3)		 0.50
(12.7)		 0.94
(23.9)		 1.85
(47.0)		 0.91
(23.0)		 1-3/8 7/8
DCB-10-8-* 5/8
(15.88)		 1/2
(21.3)		 0.50
(12.7)		 0.55
(13.9)		 1.94
(49.2)		 0.56
(14.3)		 0.75
(19.1)		 1.53
(38.9)		 0.97
(24.6)		 15/16 1
DCB-12-6-* 3/4
(19.05)		 3/8
(17.0)		 0.62
(15.8)		 0.41
(10.4)		 1.81
(45.9)		 0.56
(14.3)		 0.56
(14.2)		 1.40
(35.6)		 0.97
(24.6)		 1-1/16 1-1/8
DCB-12-8-* 3/4
(19.05)		 1/2
(21.3)		 0.62
(15.8)		 0.55
(13.9)		 2.00
(50.8)		 0.56
(14.3)		 0.75
(19.1)		 1.59
(40.5)		 0.97
(24.6)		 1-1/16 1-1/8
DCB-12-12-* 3/4
(19.05)		 3/4
(26.5)		 0.62
(15.8)		 0.74
(18.8)		 2.00
(50.9)		 0.56
(14.3)		 0.75
(19.1)		 1.60
(40.6)		 0.97
(24.6)		 1-1/16 1-1/8
DCB-12-16-* 3/4
(19.05)		 1
(33.4)		 0.62
(15.8)		 0.96
(24.3)		 2.28
(57.9)		 0.56
(14.3)		 0.94
(23.9)		 1.87
(47.6)		 0.97
(24.6)		 1-3/8 1-1/8
DCB-16-8-* 1
(25.4)		 1/2
(21.3)		 0.89
(22.5)		 0.55
(13.9)		 2.27
(57.6)		 0.75
(19.1)		 0.75
(19.1)		 1.77
(45.0)		 1.24
(31.6)		 1-3/8 1-1/2
DCB-16-16-* 1
(25.4)		 1
(33.4)		 0.89
(22.5)		 0.96
(24.3)		 2.46
(62.6)		 0.75
(19.1)		 0.94
(23.9)		 1.97
(50.0)		 1.24
(31.6)		 1-3/8 1-1/2
