Male Pipe Weld Elbow (DLB)

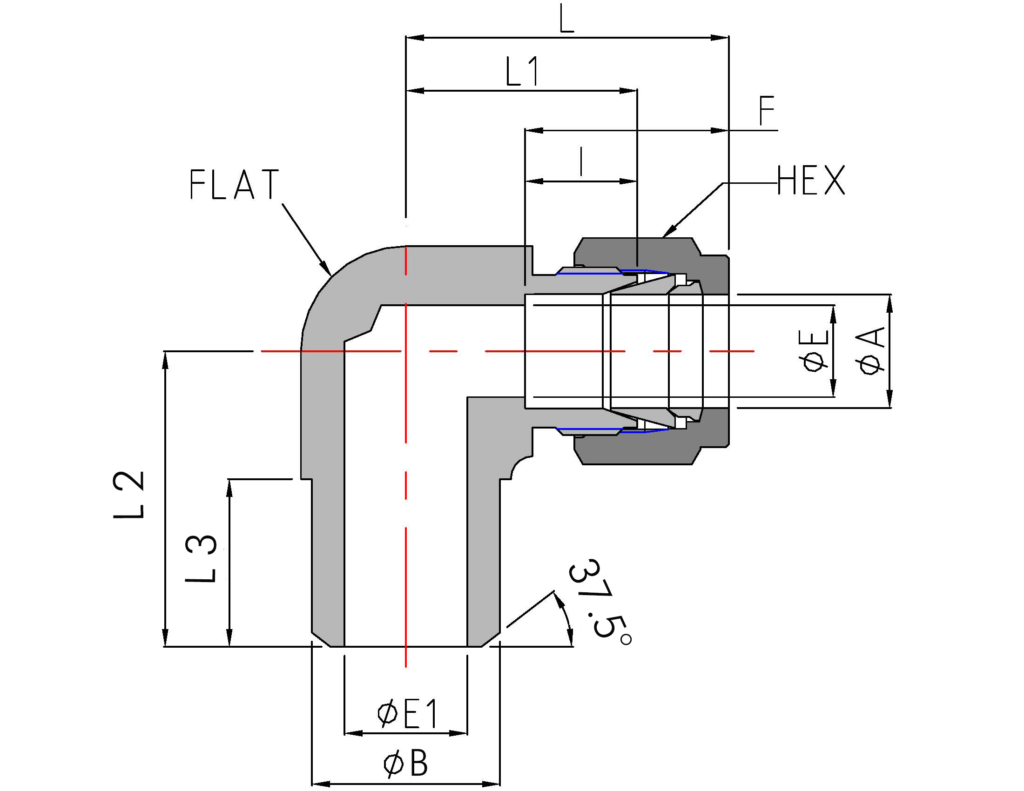

Description
| inch (mm) |
||||||||||||
| Part No. | ØA | ØB | ØE | ØE1 | L | I | L1 | L2 | L3 | F | Flat | Hex |
| Tube OD | Pipe Nominal |
|||||||||||
| DLB-2-2-* | 1/8 (3.18) |
1/8 (10.3) |
0.09 (2.3) |
0.22 (5.5) |
0.93 (23.5) |
0.25 (6.4) |
0.66 (16.8) |
0.75 (19.1) |
0.38 (9.7) |
0.51 (13.0) |
7/16 | 7/16 |
| DLB-3-2-* | 3/16 (4.76) |
1/8 (10.3) |
0.12 (3.0) |
0.22 (5.5) |
1.01 (25.7) |
0.28 (7.2) |
0.75 (19.0) |
0.75 (19.1) |
0.38 (9.7) |
0.54 (13.8) |
1/2 | 1/2 |
| DLB-4-2-* | 1/4 (6.35) |
1/8 (10.3) |
0.19 (4.8) |
0.22 (5.5) |
1.07 (27.3) |
0.31 (7.9) |
0.78 (19.8) |
0.75 (19.1) |
0.38 (9.7) |
0.61 (15.4) |
1/2 | 9/16 |
| DLB-4-4-* | 1/4 (6.35) |
1/4 (13.7) |
0.19 (4.8) |
0.30 (7.7) |
1.08 (27.5) |
0.31 (7.9) |
0.78 (19.8) |
0.94 (23.9) |
0.56 (14.2) |
0.61 (15.4) |
1/2 | 9/16 |
| DLB-6-4-* | 3/8 (9.53) |
1/4 (13.7) |
0.28 (7.1) |
0.30 (7.7) |
1.20 (30.6) |
0.37 (9.5) |
0.91 (23.1) |
1.00 (25.4) |
0.56 (14.2) |
0.67 (17.0) |
5/8 | 11/16 |
| DLB-6-6-* | 3/8 (9.53) |
3/8 (17.1) |
0.28 (7.1) |
0.41 (10.4) |
1.24 (31.5) |
0.37 (9.5) |
0.94 (24.0) |
1.12 (28.5) |
0.56 (14.2) |
0.67 (17.0) |
11/16 | 11/16 |
| DLB-6-8-* | 3/8 (9.53) |
1/2 (21.3) |
0.28 (7.1) |
0.55 (13.9) |
1.33 (33.7) |
0.37 (9.5) |
1.03 (26.2) |
1.32 (33.5) |
0.75 (19.1) |
0.67 (17.0) |
15/16 | 11/16 |
| DLB-8-6-* | 1/2 (12.7) |
3/8 (17.1) |
0.41 (10.4) |
0.41 (10.4) |
1.39 (35.3) |
0.50 (12.7) |
0.98 (25.0) |
1.08 (27.5) |
0.56 (14.2) |
0.91 (23.0) |
13/16 | 7/8 |
| DLB-8-8-* | 1/2 (12.7) |
1/2 (21.3) |
0.41 (10.4) |
0.55 (13.9) |
1.44 (36.5) |
0.50 (12.7) |
1.03 (26.2) |
1.32 (33.5) |
0.75 (19.1) |
0.91 (23.0) |
15/16 | 7/8 |
| DLB-10-8-* | 5/8 (15.88) |
1/2 (21.3) |
0.50 (12.7) |
0.55 (13.9) |
1.47 (37.3) |
0.56 (14.3) |
1.06 (27.0) |
1.32 (33.5) |
0.75 (19.1) |
0.97 (24.6) |
15/16 | 1 |
| DLB-12-12-* | 3/4 (19.05) |
3/4 (26.5) |
0.62 (15.8) |
0.74 (18.8) |
1.52 (38.5) |
0.56 (14.3) |
1.11 (28.2) |
1.40 (35.5) |
0.75 (19.1) |
0.97 (24.6) |
1-1/16 | 1-1/8 |
| DLB-16-12-* | 1 (25.4) |
3/4 (26.5) |
0.89 (22.5) |
0.74 (18.8) | 1.81 (45.9) | 0.75 (19.1) |
1.31 (33.3) |
1.56 (39.5) |
0.75 (19.1) |
1.24 (31.6) |
1-5/16 | 1-1/2 |
| DLB-16-16-* | 1 (25.4) |
1 (33.4) |
0.89 (22.5) |
0.96 (24.3) |
1.81 (45.9) |
0.75 (19.1) |
1.31 (33.3) |
1.84 (46.7) |
1.05 (26.7) |
1.24 (31.6) |
1-5/16 | 1-1/2 |
*Add suffix SS for 316 stainless steel or B for brass.
**Disassemble fittings when welding.
