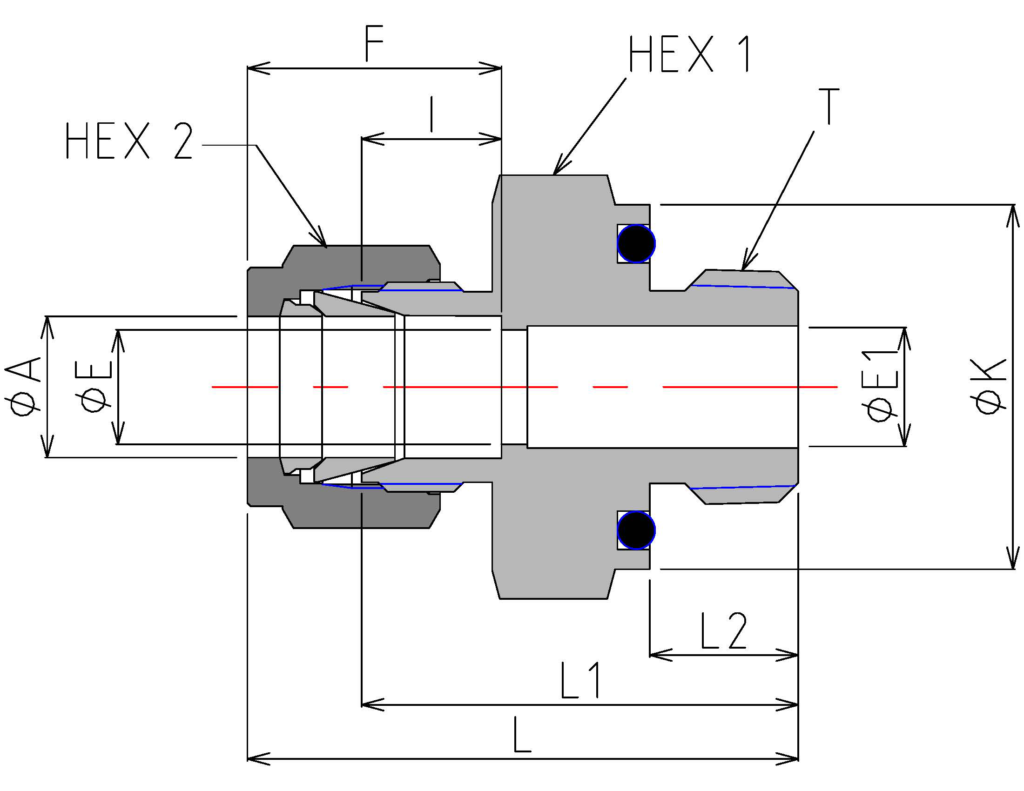

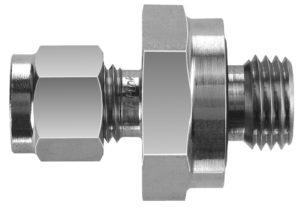

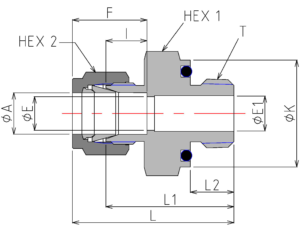

O-Seal Male NPT Connector (DCM)
Description
| inch (mm) |
|||||||||||||
| Part No. | ØA | ØE | ØE1 | L | I | L1 | L2 | F | ØK | Hex 1 | Hex 2 | T | O-Ring |
| Tube OD | NPT | AS568 | |||||||||||
| DCM-1-4-* | 1/16 (1.59) |
0.05 (1.3) |
0.19 (4.8) |
1.27 (32.3) |
0.19 (4.9) |
1.11 (28.3) |
0.38 (9.7) |
0.35 (8.9) |
0.93 (23.6) |
15/16 | 5/16 | 1/4-18 | -113 |
| DCM-2-2-* | 1/8 (3.18) |
0.09 (2.3) |
0.19 (4.8) |
1.30 (32.9) |
0.25 (6.4) |
1.03 (26.2) |
0.28 (7.1) |
0.51 (13.0) |
0.74 (18.9) |
3/4 | 7/16 | 1/8-27 | -111 |
| DCM-2-4-* | 1/8 (3.18) |
0.09 (2.3) |
0.19 (4.8) |
1.44 (36.6) |
0.25 (6.4) |
1.18 (29.9) |
0.28 (7.1) |
0.51 (13.0) |
0.74 (18.9) |
15/16 | 7/16 | 1/4-18 | -113 |
| DCM-4-2-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.39 (35.4) |
0.31 (7.9) |
1.10 (27.9) |
0.28 (7.1) |
0.61 (15.4) |
0.74 (18.9) |
3/4 | 9/16 | 1/8-27 | -111 |
| DCM-4-4-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.52 (38.7) |
0.31 (7.9) |
1.23 (31.2) |
0.38 (9.7) |
0.61 (15.4) |
0.93 (23.6) |
15/16 | 9/16 | 1/4-18 | -113 |
| DCM-6-2-* | 3/8 (9.53) |
0.28 (7.1) |
0.19 (4.8) |
1.47 (37.4) |
0.37 (9.5) |
1.18 (29.9) |
0.28 (7.1) |
0.67 (17.0) |
0.74 (18.9) |
3/4 | 11/16 | 1/8-27 | -111 |
| DCM-6-4-* | 3/8 (9.53) |
0.28 (7.1) |
0.19 (4.8) |
1.59 (40.3) |
0.37 (9.5) |
1.29 (32.8) |
0.38 (9.7) |
0.67 (17.0) |
0.93 (23.6) |
15/16 | 11/16 | 1/4-18 | -113 |
| DCM-6-6-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.63 (41.5) |
0.37 (9.5) |
1.34 (34.0) |
0.41 (10.4) |
0.67 (17.0) |
1.10 (28.0) |
1-1/8 | 11/16 | 3/8-18 | -116 |
| DCM-6-8-* | 3/8 (9.53) |
0.28 (7.1) |
0.41 (10.4) |
1.86 (47.2) |
0.37 (9.5) |
1.56 (39.7) |
0.53 (13.5) |
0.67 (17.0) |
1.30 (33.1) |
1-5/16 | 11/16 | 1/2-14 | -212 |
| DCM-8-8-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.97 (50.0) |
0.50 (12.7) |
1.56 (39.7) |
0.53 (13.5 |
0.91 (23.0) |
1.30 (33.1) |
1-5/16 | 7/8 | 1/2-14 | -212 |
*Add suffix SS for 316 stainless steel or B for brass. O-Ring is Buna 90.
