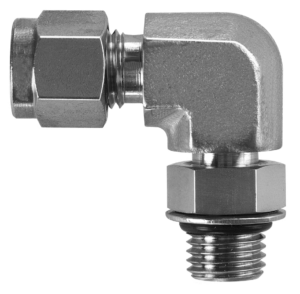

Positionable SAE/MS Male Straight Thread Elbow (DLO)
Description
| inch (mm) |
|||||||||||||

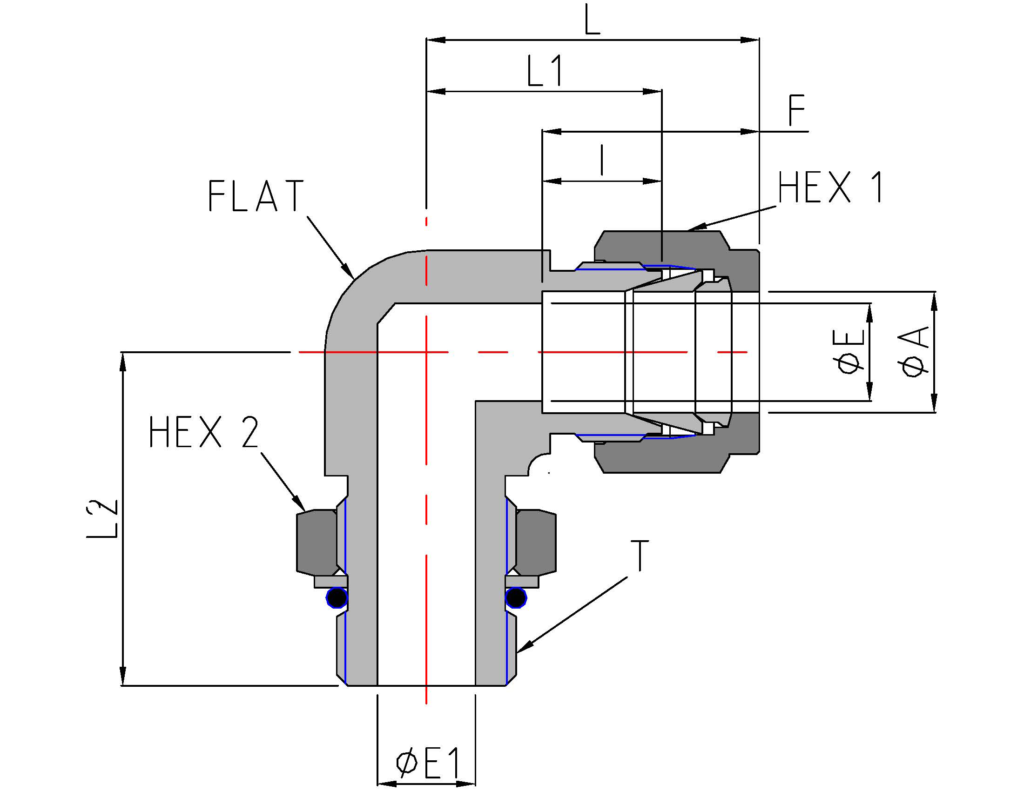

| Part No. | ØA | ØE | ØE1 | L | I | L1 | L2 | F | Hex 1 | Hex 2 | Flat | T | O-Ring |
| Tube OD | UNF | AS568 | |||||||||||
| DLO-4-4-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.12 (28.5) |
0.31 (7.9) |
0.83 (21.0) |
1.12 (28.5) |
0.61 (15.4) |
9/16 | 9/16 | 5/8 | 7/16-20 | -904 |
| DLO-4-6-* | 1/4 (6.35) |
0.19 (4.8) |
0.28 (7.1) |
1.20 (30.5) |
0.31 (7.9) |
20.12 (3.0) |
1.28 (32.5) |
0.61 (15.4) |
9/16 | 11/16 | 5/8 | 9/16-18 | -906 |
| DLO-5-5-* | 5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
1.20 (30.5) |
0.35 (8.8) |
20.12 (3.0) |
1.16 (29.5) |
0.64 (16.3) |
5/8 | 5/8 | 5/8 | 1/2-20 | -905 |
| DLO-6-6-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
30.08 (2.0) |
0.37 (9.5) |
0.96 (24.5) |
1.28 (32.5) |
0.67 (17.0) |
11/16 | 11/16 | 5/8 | 9/16-18 | -906 |
| DLO-6-8-* | 3/8 (9.53) |
0.28 (7.1) |
0.41 (10.4) |
1.38 (35.0) |
0.37 (9.5) |
1.08 (27.5) |
1.50 (38.0) |
0.67 (17.0) |
11/16 | 7/8 | 13/16 | 3/4-16 | -908 |
| DLO-8-8-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.49 (37.8) |
0.50 (12.7) |
1.08 (27.5) |
1.50 (38.0) |
0.91 (23.0) |
7/8 | 7/8 | 13/16 | 3/4-16 | -908 |
* Add suffix SS for 316 stainless steel or B for brass.
** O-Ring is Viton® (FKM fluorocarbon) 90 durometer
*** See installation instruction on page **.
