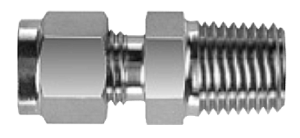

Thermocouple Connector (DCTZ)
Description

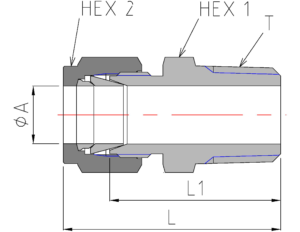

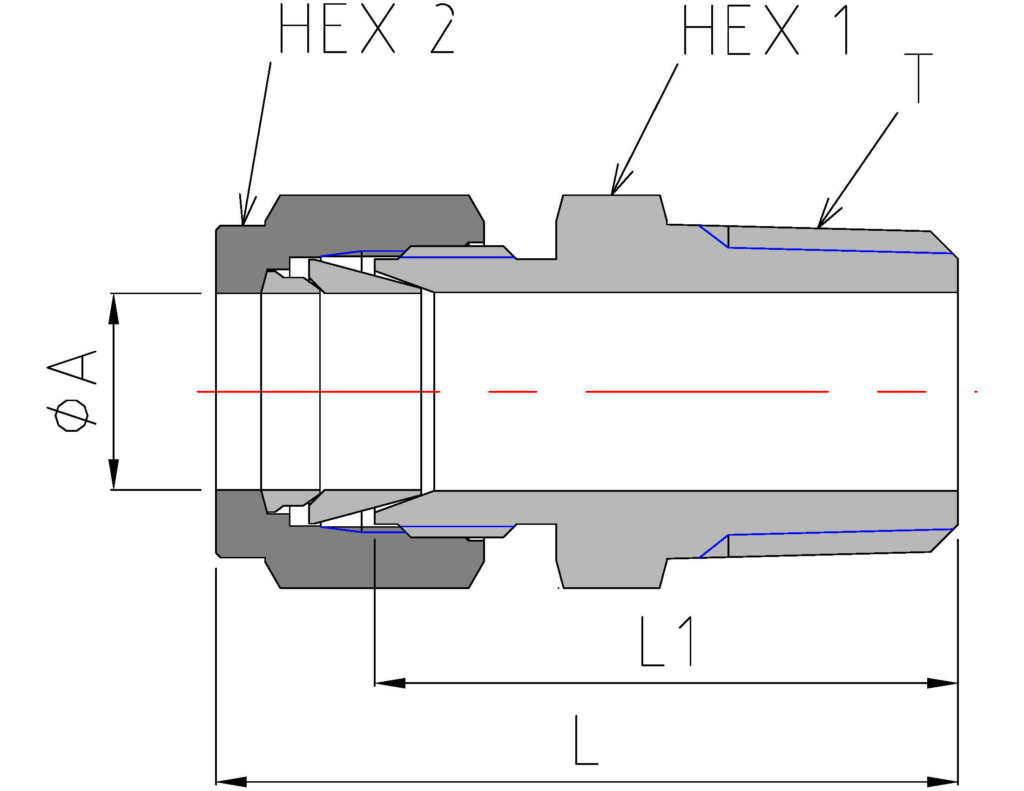

| inch (mm) |
||||||
| Part No. | ØA | L | L1 | Hex 1 | Hex 2 | T |
| Tube OD | NPT | |||||
| DCTZ-1-1-* | 1/16 (1.59) | 0.94 (24.0) | 0.79 (20.0) | 5/16 | 5/16 | 1/16 |
| DCTZ-1-2-* | 1/16 (1.59) | 1.00 (25.5) | 0.79 (20.0) | 7/16 | 5/16 | 1/8 |
| DCTZ-1-4-* | 1/16 (1.59) | 1.22 (30.9) | 1.06 (26.9) | 9/16 | 5/16 | 1/4 |
| DCTZ-2-1-* | 1/8 (3.18) | 1.17 (29.8) | 0.91 (23.1) | 7/16 | 7/16 | 1/16 |
| DCTZ-2-2-* | 1/8 (3.18) | 1.17 (29.8) | 0.91 (23.1) | 7/16 | 7/16 | 1/8 |
| DCTZ-2-4-* | 1/8 (3.18) | 1.39 (35.2) | 1.12 (28.5) | 9/16 | 7/16 | 1/4 |
| DCTZ-2-6-* | 1/8 (3.18) | 1.42 (36.1) | 1.16 (29.4) | 11/16 | 7/16 | 3/8 |
| DCTZ-2-8-* | 1/8 (3.18) | 1.64 (41.7) | 1.38 (35.0) | 7/8 | 7/16 | 1/2 |
| DCTZ-3-2-* | 3/16 (4.76) | 1.21 (30.7) | 0.94 (24.0) | 7/16 | 1/2 | 1/8 |
| DCTZ-3-4-* | 3/16 (4.76) | 1.43 (36.2) | 1.16 (29.5) | 9/16 | 1/2 | 1/4 |
| DCTZ-4-2-* | 1/4 (6.35) | 1.30 (32.9) | 1.00 (25.4) | 1/2 | 9/16 | 1/8 |
| DCTZ-4-4-* | 1/4 (6.35) | 1.49 (37.8) | 1.19 (30.3) | 9/16 | 9/16 | 1/4 |
| DCTZ-4-6-* | 1/4 (6.35) | 1.52 (38.5) | 1.22 (31.0) | 11/16 | 9/16 | 3/8 |
| DCTZ-4-8-* | 1/4 (6.35) | 1.74 (44.1) | 1.44 (36.6) | 7/8 | 9/16 | 1/2 |
| DCTZ-4-12-* | 1/4 (6.35) | 1.77 (44.9) | 1.47 (37.4) | 1-1/16 | 9/16 | 3/4 |
| DCTZ-4-16-* | 1/4 (6.35) | 2.11 (53.5) | 1.81 (46.0) | 1-3/8 | 9/16 | 1 |
| DCTZ-5-4-* | 5/16 (7.94) | 1.53 (38.8) | 1.23 (31.3) | 9/16 | 5/8 | 1/4 |
| DCTZ-5-6-* | 5/16 (7.94) | 1.59 (40.3) | 1.29 (32.8) | 11/16 | 5/8 | 3/8 |
| DCTZ-5-8-* | 5/16 (7.94) | 1.76 (44.8) | 1.47 (37.3) | 7/8 | 5/8 | 1/2 |
| DCTZ-6-4-* | 3/8 (9.53) | 1.57 (40.0) | 1.28 (32.5) | 5/8 | 11/16 | 1/4 |
| DCTZ-6-6-* | 3/8 (9.53) | 1.57 (40.0) | 1.28 (32.5) | 11/16 | 11/16 | 3/8 |
| DCTZ-6-8-* | 3/8 (9.53) | 1.80 (45.6) | 1.50 (38.1) | 7/8 | 11/16 | 1/2 |
| DCTZ-6-12-* | 3/8 (9.53) | 1.83 (46.5) | 1.54 (39.0) | 1-1/16 | 11/16 | 3/4 |
| DCTZ-6-16-* | 3/8 (9.53) | 2.17 (55.1) | 1.87 (47.6) | 1-3/8 | 11/16 | 1 |
| DCTZ-8-6-* | 1/2 (12.7) | 1.72 (43.6) | 1.31 (33.3) | 13/16 | 7/8 | 3/8 |
| DCTZ-8-8-* | 1/2 (12.7) | 1.91 (48.4) | 1.50 (38.1) | 7/8 | 7/8 | 1/2 |
| DCTZ-8-12-* | 1/2 (12.7) | 1.94 (49.3) | 1.54 (39.0) | 1-1/16 | 7/8 | 3/4 |
| DCTZ-8-16-* | 1/2 (12.7) | 2.28 (57.9) | 1.87 (47.6) | 1-3/8 | 7/8 | 1 |
| DCTZ-10-8-* | 5/8 (15.88) | 1.94 (49.3) | 1.54 (39.0) | 15/16 | 1 | 1/2 |
| DCTZ-10-12-* | 5/8 (15.88) | 1.94 (49.2) | 1.53 (38.9) | 1-1/16 | 1 | 3/4 |
| DCTZ-12-12-* | 3/4 (19.05) | 2.00 (50.7) | 1.59 (40.4) | 1-1/16 | 1-1/8 | 3/4 |
| DCTZ-12-16-* | 3/4 (19.05) | 2.28 (57.9) | 1.87 (47.6) | 1-3/8 | 1-1/8 | 1 |
| DCTZ-14-16-* | 7/8 (22.23) | 2.28 (57.8) | 1.87 (47.6) | 1-3/8 | 1-1/4 | 1 |
| DCTZ-16-16-* | 1 (25.4) | 2.46 (62.6) | 1.97 (50.0) | 1-3/8 | 1-1/2 | 1 |
*Add suffix SS for 316 stainless steel or B for brass. ** See page 11 for stress factor. ISO thread is available.
