Tube Insert (DTI)

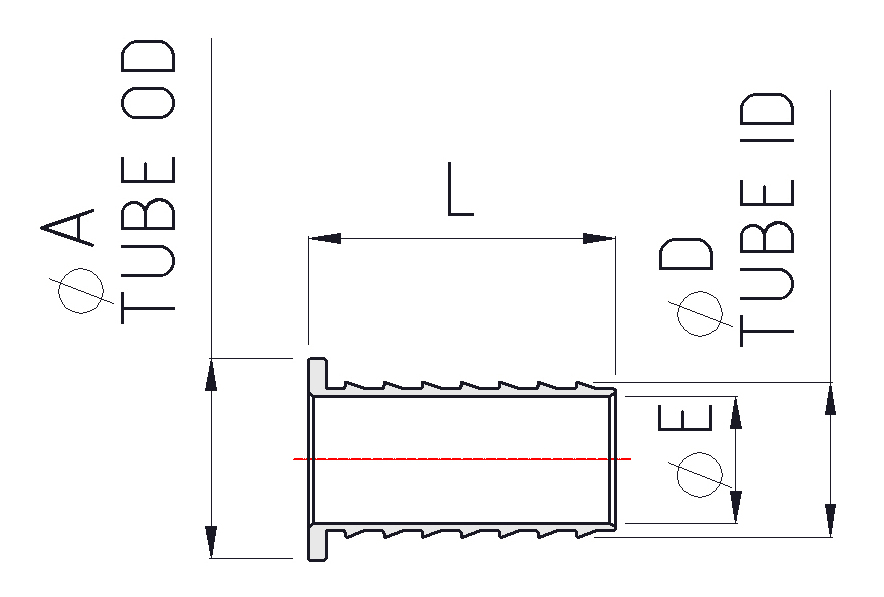

Description
| inch (mm) |
||||
| Part No. | ØA | ØD Tube ID |
ØE | L |
| Tube OD | ||||
| DTI-3-2-* | 3/16 (4.76) |
1/8 (3.18) |
0.09 (2.3) |
0.47 (11.9) |
| DTI-4-2-* | 1/4 (6.35) |
1/8 (3.18) |
0.09 (2.3) |
0.47 (11.9) |
| DTI-4-3-* | 1/4 (6.35) |
3/16 (4.76) |
0.14 (3.5) |
0.47 (11.9) |
| DTI-5-2-* | 5/16 (7.94) |
1/8 (3.18) |
0.09 (2.3) |
0.47 (11.9) |
| DTI-5-3-* | 5/16 (7.94) |
3/16 (4.76) |
0.12 (3.0) |
0.56 (14.3) |
| DTI-5-4-* | 5/16 (7.94) |
1/4 (6.35) |
0.19 (4.8) |
0.56 (14.3) |
| DTI-6-3-* | 3/8 (9.53) |
3/16 (4.76) |
0.12 (3.0) |
0.56 (14.3) |
| DTI-6-4-* | 3/8 (9.53) |
1/4 (6.35) |
0.19 (4.8) |
0.56 (14.3) |
| DTI-8-4-* | 1/2 (12.7) |
1/4 (6.35) |
0.19 (4.8) |
0.75 (19.1) |
| DTI-8-6-* | 1/2 (12.7) |
3/8 (9.53) |
0.31 (7.9) |
0.75 (19.1) |
| DTI-10-6-* | 5/8 (15.88) |
3/8 (9.53) |
0.31 (7.9) |
0.85 (21.5) |
| DTI-10-8-* | 5/8 (15.88) |
1/2 (12.7) |
0.44 (11.2) |
0.86 (21.8) |
| DTI-12-8-* | 3/4 (19.05) |
1/2 (12.7) |
0.44 (11.2) |
0.86 (21.8) |
| DTI-12-10-* | 3/4 (19.05) |
5/8 (15.88) |
0.56 (14.2) |
0.86 (21.8) |
| DTI-16-12-* | 1 (25.4) |
3/4 (19.05) |
0.69 (17.5) |
0.94 (23.8) |
| DTI-16-14-* | 1 (25.4) |
7/8 (22.23) |
0.81 (20.6) |
0.94 (23.8) |
*Add suffix SS for 316 stainless steel or B for brass.
