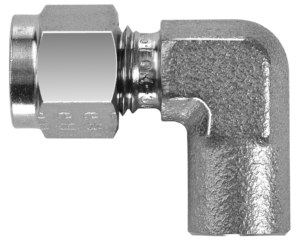

Tube Socket Weld Elbow (DLW)
Description
| inch (mm) |
||||||||||||

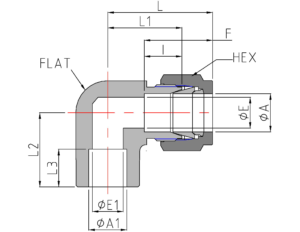

| Part No. | ØA | ØA1 | ØE | ØE1 | L | I | L1 | L2 | L3 | F | Hex | Flat |
| Tube OD | ||||||||||||
| DLW-2-2-* | 1/8 (3.18) |
1/8 (3.18) |
0.09 (2.3) |
0.09 (2.3) |
0.89 (22.5) |
0.25 (6.4) |
0.62 (15.8) |
0.62 (15.8) |
0.25 (6.4) |
0.51 (13.0) |
7/16 | 3/8 |
| DLW-3-3-* | 3/16 (4.76) |
3/16 (4.76) |
0.12 (3.0) |
0.12 (3.0) |
1.01 (25.7) |
0.28 (7.2) |
0.75 (19.0) |
0.75 (19.0) |
0.28 (7.1) |
0.54 (13.8) |
1/2 | 1/2 |
| DLW-4-4-* | 1/4 (6.35) |
1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.07 (27.3) |
0.31 (7.9) |
0.78 (19.8) |
0.78 (19.8) |
0.31 (7.9) |
0.61 (15.4) |
9/16 | 1/2 |
| DLW-6-4-* | 3/8 (9.53) |
1/4 (6.35) |
0.28 (7.1) |
0.19 (4.8) |
1.20 (30.5) |
0.37 (9.5) |
0.91 (23.0) |
0.91 (23.0) |
0.31 (7.9) |
0.67 (17.0) |
11/16 | 5/8 |
| DLW-6-6-* | 3/8 (9.53) |
3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.20 (30.5) |
0.37 (9.5) |
0.91 (23.1) |
0.91 (23.1) |
0.38 (9.7) |
0.67 (17.0) |
11/16 | 5/8 |
| DLW-8-8-* | 1/2 (12.7) |
1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.39 (35.3) |
0.50 (12.7) |
0.98 (25.0) |
0.98 (25.0) |
0.50 (12.7) |
0.91 (23.0) |
7/8 | 13/16 |
| DLW-10-10-* | 5/8 (15.88) |
5/8 (15.88) |
0.50 (12.7) |
0.50 (12.7) |
1.47 (37.3) |
0.56 (14.3) |
1.06 (27.0) |
1.06 (27.0) |
0.56 (14.2) |
0.97 (24.6) |
1 | 15/16 |
| DLW-12-12-* | 3/4 (19.05) |
3/4 (19.05) |
0.62 (15.8) |
0.62 (15.8) |
1.52 (38.5) |
0.56 (14.3) |
1.11 (28.2) |
1.11 (28.2) |
0.56 (14.2) |
0.97 (24.6) |
1-1/8 | 1-1/16 |
| DLW-16-16-* | 1 (25.4) |
1 (25.4) |
0.89 (22.5) |
0.89 (22.5) |
1.81 (45.9) |
0.75 (19.1) |
1.31 (33.3) |
1.31 (33.3) |
0.75 (19.1) |
1.24 (31.6) |
1-1/2 | 1-5/16 |
* Add suffix SS for 316 stainless steel or B for brass.
** Disassemble fittings when welding.
