Tube Socket Weld Union (DCW)
Description
| inch (mm) |
|||||||||||

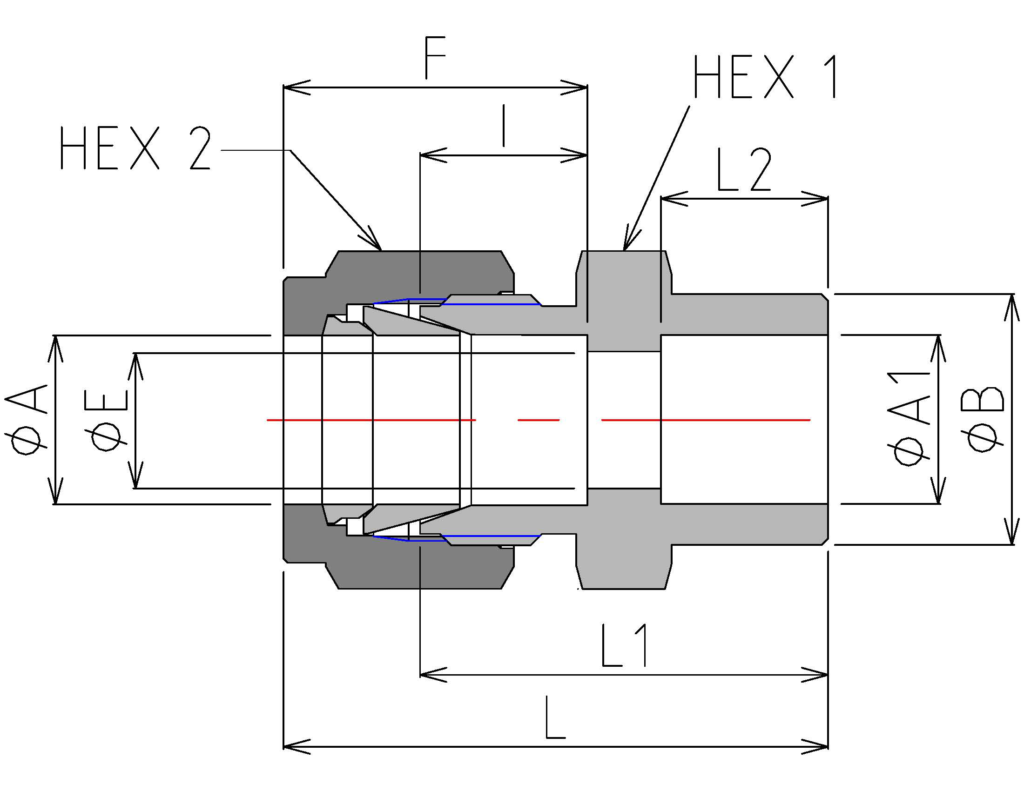

| Part No. | ØA | ØA1 | ØB | ØE | L | I | L2 | L1 | F | Hex 1 | Hex 2 |
| Tube OD | Tube OD |
||||||||||
| DCW-2-2-* | 1/8 (3.18) |
1/8 (3.18) |
0.31 (7.9) |
0.09 (2.3) |
1.15 (29.1) |
0.25 (6.4) |
0.25 (6.4) |
0.88 (22.4) |
0.51 (13.0) |
7/16 | 7/16 |
| DCW-4-4-* | 1/4 (6.35) |
1/4 (6.35) |
0.44 (11.2) |
0.19 (4.8) |
1.33 (33.7) |
0.31 (7.9) |
0.31 (7.9) |
1.03 (26.2) |
0.61 (15.4) |
1/2 | 9/16 |
| DCW-4-6-* | 1/4 (6.35) |
3/8 (9.53) |
0.61 (15.4) |
0.19 (4.8) |
1.42 (36.0) |
0.31 (7.9) |
0.38 (9.7) |
1.12 (28.5) |
0.61 (15.4) |
5/8 | 9/16 |
| DCW-5-5-* | 5/16 (7.94) |
5/16 (7.94) |
10.12 (3.0) |
0.25 (6.4) |
1.38 (35.0) |
0.35 (8.8) |
0.35 (9.0) |
1.08 (27.5) |
0.64 (16.3) |
9/16 | 5/8 |
| DCW-6-6-* | 3/8 (9.53) |
3/8 (9.53) |
0.62 (15.7) |
0.28 (7.1) |
1.48 (37.7) |
0.37 (9.5) |
0.38 (9.7) |
1.19 (30.2) |
0.67 (17.0) |
5/8 | 11/16 |
| DCW-6-8-* | 3/8 (9.53) |
1/2 (12.7) |
0.75 (19.1) |
0.28 (7.1) |
1.52 (38.5) |
0.37 (9.5) |
0.50 (12.7) |
1.22 (31.0) |
0.67 (17.0) |
13/16 | 11/16 |
| DCW-8-8-* | 1/2 (12.7) |
1/2 (12.7) |
0.75 (19.1) |
0.41 (10.4) |
1.63 (41.3) |
0.50 (12.7) |
0.50 (12.7) |
1.22 (31.0) |
0.91 (23.0) |
13/16 | 7/8 |
| DCW-8-12-* | 1/2 (12.7) |
3/4 (19.05) |
1.05 (26.7) |
0.41 (10.4) |
1.72 (43.6) |
0.50 (12.7) |
0.56 (14.2) |
1.31 (33.3) |
0.91 (23.0) |
1-1/16 | 7/8 |
| DCW-8-16-* | 1/2 (12.7) |
1 (25.4) |
1.31 (33.3) |
0.89 (22.5) |
1.86 (47.3) |
0.50 (12.7) |
0.75 (19.1) |
1.46 (37.0) |
0.91 (23.0) |
1-3/8 | 7/8 |
| DCW-10-10-* | 5/8 (15.88) |
5/8 (15.88) |
0.91 (23.2) |
0.50 (12.7) |
1.66 (42.1) |
0.56 (14.3) |
0.56 (14.2) |
1.25 (31.8) |
0.97 (24.6) |
15/16 | 1 |
| DCW-12-8-* | 3/4 (19.05) |
1/2 (12.7) |
0.75 (19.1) |
0.62 (15.8) |
1.70 (43.3) |
0.56 (14.3) |
0.50 (12.7) |
1.30 (33.0) |
0.97 (24.6) |
1-1/16 | 1-1/8 |
| DCW-12-12-* | 3/4 (19.05) |
3/4 (19.05) |
1.05 (26.7) |
0.62 (15.8) |
1.72 (43.6) |
0.56 (14.3) |
0.56 (14.2) |
1.31 (33.3) |
0.97 (24.6) |
1-1/16 | 1-1/8 |
| DCW-16-16-* | 1 (25.4) |
1 (25.4) |
1.31 (33.3) |
0.89 (22.5) |
2.09 (53.1) |
0.75 (19.1) |
0.75 (19.1) |
1.59 (40.5) |
1.24 (31.6) |
1-3/8 | 1-1/2 |
*Add suffix SS for 316 stainless steel or B for brass.
**Disassemble fittings when welding.
