Tube Stub to Male NPT Adapter (DHA)

Tube Stub to Male NPT Adapter (DHA)
Tube Stub to Male NPT Adapter (DHA)
Tube Stub to Male NPT Adapter (DHA)
Description
inch
(mm)

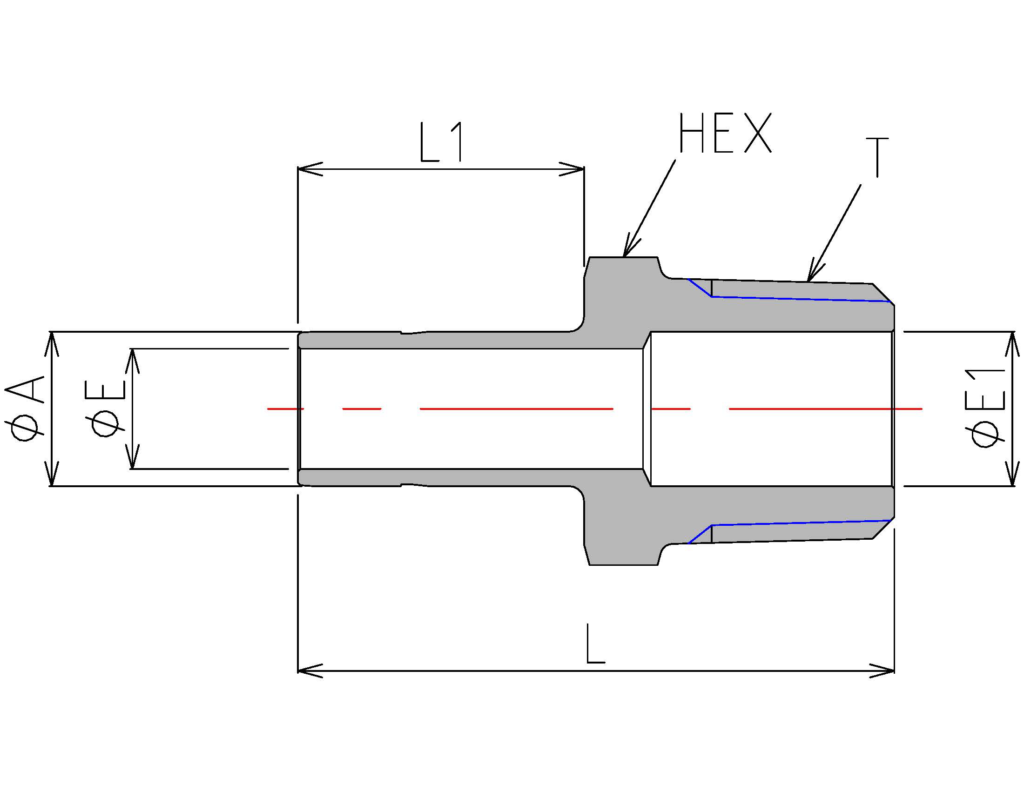

Part No. ØA ØE ØE1 L L1 Hex T
Tube OD NPT
DHA-2-1-* 1/8
(3.18)		 0.07
(1.8)		 0.12
(3.0)		 1.06
(26.9)		 0.55
(14.0)		 7/16 1/16
DHA-2-2-* 1/8
(3.18)		 0.07
(1.8)		 0.18
(4.6)		 1.12
(28.4)		 0.55
(14.0)		 7/16 1/8
DHA-2-4-* 1/8
(3.18)		 0.07
(1.8)		 0.28
(7.1)		 1.32
(33.5)		 0.55
(14.0)		 9/16 1/4
DHA-3-2-* 3/16
(4.76)		 0.12
(3.0)		 0.18
(4.6)		 1.15
(29.2)		 0.58
(14.8)		 7/16 1/8
DHA-3-4-* 3/16
(4.76)		 0.12
(3.0)		 0.28
(7.1)		 1.34
(34.0)		 0.58
(14.8)		 9/16 1/4
DHA-4-2-* 1/4
(6.35)		 0.18
(4.6)		 0.18
(4.6)		 1.22
(31.0)		 0.65
(16.5)		 7/16 1/8
DHA-4-4-* 1/4
(6.35)		 0.18
(4.6)		 0.28
(7.1)		 1.40
(35.5)		 0.65
(16.5)		 9/16 1/4
DHA-4-6-* 1/4
(6.35)		 0.18
(4.6)		 0.41
(10.4)		 1.44
(36.5)		 0.65
(16.5)		 11/16 3/8
DHA-4-8-* 1/4
(6.35)		 0.18
(4.6)		 0.50
(12.7)		 1.65
(42.0)		 0.65
(16.5)		 7/8 1/2
DHA-5-2-* 5/16
(7.94)		 0.25
(6.4)		 0.18
(4.6)		 1.25
(31.8)		 0.68
(17.2)		 7/16 1/8
DHA-5-4-* 5/16
(7.94)		 0.25
(6.4)		 0.28
(7.1)		 1.46
(37.1)		 0.68
(17.2)		 9/16 1/4
DHA-6-2-* 3/8
(9.53)		 0.28
(7.1)		 0.18
(4.6)		 1.31
(33.3)		 0.71
(18.0)		 7/16 1/8
DHA-6-4-* 3/8
(9.53)		 0.28
(7.1)		 0.28
(7.1)		 1.50
(38.0)		 0.71
(18.0)		 9/16 1/4
DHA-6-6-* 3/8
(9.53)		 0.28
(7.1)		 0.41
(10.4)		 1.50
(38.0)		 0.71
(18.0)		 11/16 3/8
DHA-6-8-* 3/8
(9.53)		 0.28
(7.1)		 0.50
(12.7)		 1.71
(43.5)		 0.71
(18.0)		 7/8 1/2
DHA-8-2-* 1/2
(12.7)		 0.39
(9.9)		 0.18
(4.6)		 1.56
(39.6)		 0.93
(23.5)		 9/16 1/8
DHA-8-4-* 1/2
(12.7)		 0.39
(9.9)		 0.28
(7.1)		 1.71
(43.5)		 0.93
(23.5)		 9/16 1/4
DHA-8-6-* 1/2
(12.7)		 0.39
(9.9)		 0.41
(10.4)		 1.75
(44.5)		 0.93
(23.5)		 11/16 3/8
DHA-8-8-* 1/2
(12.7)		 0.39
(9.9)		 0.50
(12.7)		 1.93
(49.0)		 0.93
(23.5)		 7/8 1/2
DHA-8-12-* 1/2
(12.7)		 0.39
(9.9)		 0.62
(15.8)		 1.96
(49.9)		 0.93
(23.5)		 1-1/16 3/4
DHA-8-16-* 1/2
(12.7)		 0.39
(9.9)		 0.89
(22.5)		 2.21
(56.2)		 0.93
(23.5)		 1-3/8 1
DHA-10-6-* 5/8
(15.88)		 0.50
(12.7)		 0.41
(10.4)		 1.81
(46.0)		 0.99
(25.2)		 11/16 3/8
DHA-10-8-* 5/8
(15.88)		 0.50
(12.7)		 0.50
(12.7)		 2.00
(50.8)		 0.99
(25.2)		 7/8 1/2
DHA-10-12-* 5/8
(15.88)		 0.50
(12.7)		 0.72
(18.3)		 2.03
(51.6)		 0.99
(25.2)		 1-1/16 3/4
DHA-12-4-* 3/4
(19.05)		 0.59
(15.0)		 0.28
(7.1)		 1.81
(46.0)		 0.99
(25.2)		 7/8 1/4
DHA-12-6-* 3/4
(19.05)		 0.59
(15.0)		 0.41
(10.4)		 1.80
(45.7)		 0.99
(25.2)		 7/8 3/8
DHA-12-8-* 3/4
(19.05)		 0.59
(15.0)		 0.50
(12.7)		 2.00
(50.7)		 0.99
(25.2)		 7/8 1/2
DHA-12-12-* 3/4
(19.05)		 0.59
(15.0)		 0.72
(18.3)		 2.03
(51.6)		 0.99
(25.2)		 1-1/16 3/4
DHA-12-16-* 3/4
(19.05)		 0.59
(15.0)		 0.89
(22.5)		 2.28
(57.9)		 0.99
(25.2)		 1-3/8 1
DHA-14-12-* 7/8
(22.23)		 0.68
(17.3)		 0.72
(18.3)		 2.09
(53.1)		 1.06
(27.0)		 1-1/16 3/4
DHA-16-12-* 1
(25.4)		 0.79
(20.1)		 0.72
(18.3)		 2.28
(58.0)		 1.28
(32.5)		 1-1/16 3/4
DHA-16-16-* 1
(25.4)		 0.79
(20.1)		 0.89
(22.5)		 2.56
(65.0)		 1.28
(32.5)		 1-3/8 1

*Add suffix SS for 316 stainless steel or B for brass.
ISO thread is available.
