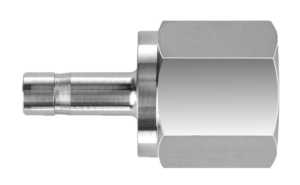

Tube Stub to Female NPT Adapter (DHC)
Description
| inch (mm) |
||||||

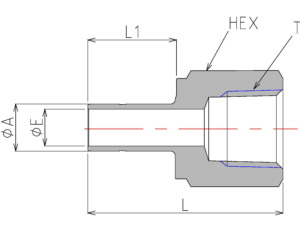

| Part No. | ØA | ØE | L | L1 | Hex | T |
| Tube OD | NPT | |||||
| DHC-2-2-* | 1/8 (3.18) |
0.07 (1.8) |
1.22 (31.0) |
0.55 (14.0) |
9/16 | 1/8 |
| DHC-2-4-* | 1/8 (3.18) |
0.07 (1.8) |
1.34 (34.0) |
0.55 (14.0) |
3/4 | 1/4 |
| DHC-3-2-* | 3/16 (4.76) |
0.13 (3.2) |
1.26 (32.1) |
10.19 (4.8) |
9/16 | 1/8 |
| DHC-3-4-* | 3/16 (4.76) |
0.13 (3.2) |
1.37 (34.8) |
10.19 (4.8) |
3/4 | 1/4 |
| DHC-4-2-* | 1/4 (6.35) |
0.18 (4.6) |
1.32 (33.5) |
0.65 (16.5) |
9/16 | 1/8 |
| DHC-4-4-* | 1/4 (6.35) |
0.18 (4.6) |
1.44 (36.5) |
0.65 (16.5) |
3/4 | 1/4 |
| DHC-4-6-* | 1/4 (6.35) |
0.18 (4.6) |
1.56 (39.5) |
0.65 (16.5) |
7/8 | 3/8 |
| DHC-4-8-* | 1/4 (6.35) |
0.18 (4.6) |
1.78 (45.2) |
0.65 (16.5) |
1-1/16 | 1/2 |
| DHC-5-2-* | 5/16 (7.94) |
0.25 (6.4) |
1.35 (34.3) |
0.68 (17.2) |
9/16 | 1/8 |
| DHC-5-4-* | 5/16 (7.94) |
0.25 (6.4) |
1.46 (37.1) |
0.68 (17.2) |
3/4 | 1/4 |
| DHC-6-2-* | 3/8 (9.53) |
0.28 (7.1) |
1.39 (35.3) |
0.71 (18.0) |
9/16 | 1/8 |
| DHC-6-4-* | 3/8 (9.53) |
0.28 (7.1) |
1.50 (38.0) |
0.71 (18.0) |
3/4 | 1/4 |
| DHC-6-6-* | 3/8 (9.53) |
0.28 (7.1) |
1.61 (41.0) |
0.71 (18.0) |
7/8 | 3/8 |
| DHC-6-8-* | 3/8 (9.53) |
0.28 (7.1) |
1.83 (46.5) |
0.71 (18.0) |
1-1/16 | 1/2 |
| DHC-8-2-* | 1/2 (12.7) |
0.39 (9.9) |
1.59 (40.5) |
0.93 (23.5) |
9/16 | 1/8 |
| DHC-8-4-* | 1/2 (12.7) |
0.39 (9.9) |
1.71 (43.5) |
0.93 (23.5) |
3/4 | 1/4 |
| DHC-8-6-* | 1/2 (12.7) |
0.39 (9.9) |
1.85 (47.0) |
0.93 (23.5) |
7/8 | 3/8 |
| DHC-8-8-* | 1/2 (12.7) |
0.39 (9.9) |
2.07 (52.5) |
0.93 (23.5) |
1-1/16 | 1/2 |
| DHC-8-12-* | 1/2 (12.7) |
0.39 (9.9) |
2.13 (54.0) |
0.93 (23.5) |
1-1/4 | 3/4 |
| DHC-10-6-* | 5/8 (15.88) |
0.50 (12.7) |
1.90 (48.3) |
0.99 (25.2) |
7/8 | 3/8 |
| DHC-10-8-* | 5/8 (15.88) |
0.50 (12.7) |
2.12 (53.8) |
0.99 (25.2) |
1-1/16 | 1/2 |
| DHC-10-12-* | 5/8 (15.88) |
0.50 (12.7) |
2.18 (55.4) |
0.99 (25.2) |
1-1/4 | 3/4 |
| DHC-12-8-* | 3/4 (19.05) |
0.59 (15.0) |
2.13 (54.0) |
0.99 (25.2) |
1-1/16 | 1/2 |
| DHC-12-12-* | 3/4 (19.05) |
0.59 (15.0) |
2.18 (55.4) |
0.99 (25.2) |
1-1/4 | 3/4 |
| DHC-12-16-* | 3/4 (19.05) |
0.59 (15.0) |
2.46 (62.5) |
0.99 (25.2) |
1-5/8 | 1 |
| DHC-14-12-* | 7/8 (22.23) |
0.68 (17.3) |
2.25 (57.2) |
1.06 (27.0) |
1-1/4 | 3/4 |
| DHC-16-8-* | 1 (25.4) |
0.79 (20.1) |
2.40 (61.0) |
1.28 (32.5) |
1-1/16 | 1/2 |
| DHC-16-12-* | 1 (25.4) |
0.79 (20.1) |
2.44 (62.0) |
1.28 (32.5) |
1-1/4 | 3/4 |
| DHC-16-16-* | 1 (25.4) |
0.79 (20.1) |
2.71 (68.8) |
1.28 (32.5) |
1-5/8 | 1 |
*Add suffix SS for 316 stainless steel or B for brass.
ISO thread is available.
