Union Cross (DXA)
Union Cross (DXA)
Union Cross (DXA)
Union Cross (DXA)
Description
inch
(mm)

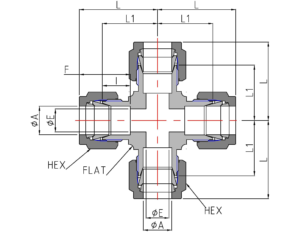

Part No. ØA ØE I F L L1 Flat Hex
Tube OD
DXA-1-* 1/16
(1.59)
0.05
(1.3)
0.19
(4.9)
0.35
(8.9)
0.72
(18.2)
0.56
(14.2)
3/8 5/16
DXA-2-* 1/8
(3.18)
0.09
(2.3)
0.25
(6.4)
0.51
(13.0)
0.89
(22.5)
0.62
(15.8)
3/8 7/16
DXA-3-* 3/16
(4.76)
0.12
(3.0)
0.28
(7.2)
0.54
(13.8)
1.01
(25.7)
0.75
(19.0)
1/2 1/2
DXA-4-* 1/4
(6.35)
0.19
(4.8)
0.31
(7.9)
0.61
(15.4)
1.08
(27.5)
0.79
(20.0)
1/2 9/16
DXA-5-* 5/16
(7.94)
0.25
(6.4)
0.35
(8.8)
0.64
(16.3)
1.18
(29.9)
0.88
(22.4)
5/8 5/8
DXA-6-* 3/8
(9.53)
0.28
(7.1)
0.37
(9.5)
0.67
(17.0)
1.20
(30.5)
0.91
(23.0)
5/8 11/16
DXA-8-* 1/2
(12.7)
0.41
(10.4)
0.50
(12.7)
0.91
(23.0)
1.39
(35.3)
0.98
(25.0)
13/16 7/8
DXA-10-* 5/8
(15.88)
0.50
(12.7)
0.56
(14.3)
0.97
(24.6)
1.47
(37.3)
1.06
(27.0)
15/16 1
DXA-12-* 3/4
(19.05)
0.62
(15.8)
0.56
(14.3)
0.97
(24.6)
1.52
(38.5)
1.11
(28.2)
1-1/16 1-1/8
**DXA-14-SS 7/8
(22.23)
0.72
(18.3)
0.63
(15.9)
1.03
(26.1)
1.68
(42.7)
1.28
(32.5)
1 1-1/4 1-1/4
**DXA-16-SS 1
(25.4)
0.89
(22.5)
0.75
(19.1)
1.24
(31.6)
1.81
(45.9)
1.31
(33.3)

1
1-3/8
1-1/2

*Add suffix SS for 316 stainless steel or B for brass.
**Currently available 316 stainless steel only.
