Union (DUA)
Description
| inch (mm) |
||||||||

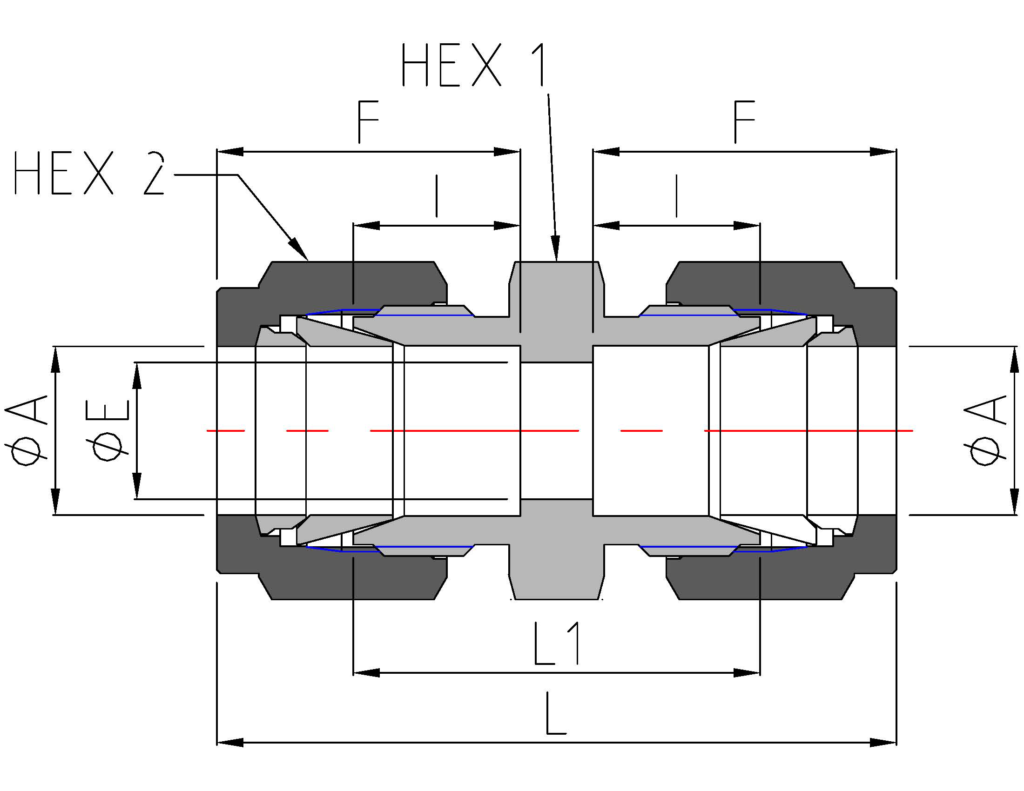

| Part No. | ØA | ØE | I | F | L | L1 | Hex 1 | Hex 2 |
| Tube OD | ||||||||
| DUA-1-* | 1/16 (1.59) |
0.05 (1.3) |
0.19 (4.9) |
0.35 (8.9) |
1.00 (25.5) |
0.69 (17.5) |
5/16 | 5/16 |
| DUA-2-* | 1/8 (3.18) |
0.09 (2.3) |
0.25 (6.4) |
0.51 (13.0) |
1.41 (35.8) |
0.88 (22.4) |
7/16 | 7/16 |
| DUA-3-* | 3/16 (4.76) |
0.12 (3.0) |
0.28 (7.2) |
0.54 (13.8) |
1.47 (37.4) |
0.94 (24.0) |
7/16 | 1/2 |
| DUA-4-* | 1/4 (6.35) |
0.19 (4.8) |
0.31 (7.9) |
0.61 (15.4) |
1.62 (41.1) |
1.03 (26.1) |
1/2 | 9/16 |
| DUA-5-* | 5/16 (7.94) |
0.25 (6.4) |
0.35 (8.8) |
0.64 (16.3) |
1.69 (43.0) |
1.10 (28.0) |
9/16 | 5/8 |
| DUA-6-* | 3/8 (9.53) |
0.28 (7.1) |
0.37 (9.5) |
0.67 (17.0) |
1.78 (45.2) |
1.19 (30.2) |
5/8 | 11/16 |
| DUA-8-* | 1/2 (12.7) |
0.41 (10.4) |
0.50 (12.7) |
0.91 (23.0) |
2.03 (51.6) |
1.22 (31.0) |
13/16 | 7/8 |
| DUA-10-* | 5/8 (15.88) |
0.50 (12.7) |
0.56 (14.3) |
0.97 (24.6) |
2.06 (52.4) |
1.25 (31.8) |
15/16 | 1 |
| DUA-12-* | 3/4 (19.05) |
0.62 (15.8) |
0.56 (14.3) |
0.97 (24.6) |
2.12 (53.9) |
1.31 (33.3) |
1-1/16 | 1-1/8 |
| DUA-14-* | 7/8 (22.23) |
0.72 (18.3) |
0.63 (15.9) |
1.03 (26.1) |
2.18 (55.4) |
1.38 (35.0) |
1-3/16 | 1-1/4 |
| DUA-16-* | 1 (25.4) |
0.88 (22.4) |
0.75 (19.1) |
1.24 (31.6) |
2.59 (65.7) |
1.59 (40.5) |
1-3/8 | 1-1/2 |
*Add suffix SS for 316 stainless steel or B for brass.
