Cryogenic / Pressure Build Regulator (CR)
Cryogenic / Pressure Build Regulator (CR)
Cryogenic / Pressure Build Regulator (CR)
Cryogenic / Pressure Build Regulator (CR)

3/8” and 1/2" NPT, BSPT
Inlet 400 Psig (28 Bar)

Description

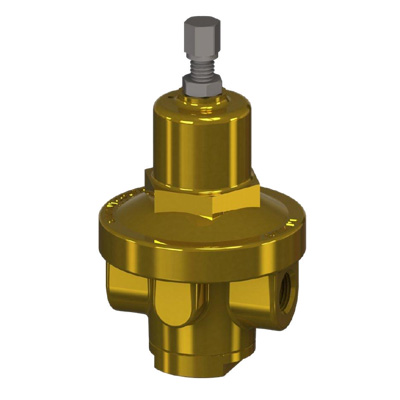

The Generant Series CR Cryogenic Regulator provides high flow during Cryogenic Vessel Pressure Build function and increased sensitivity to downstream pressure changes as a function of our pre-formed all metallic diaphragm and optimized spring design. The unique diaphragm is unlike anything on the market today and results in less decrease in Cryogenic vessel pressure and faster recovery during periods of higher demand, thus decreasing the potential for flooding the pressure build coil. The unit features a 304 SS Inlet Strainer/Filter to aid in reducing contaminant related failures. Optional Cleaned and Packaged for Oxygen Service Series CR Regulators utilize Monel Inlet Strainer/Filters. All Series CR Cryogenic Regulators are 100% Factory Tested and are supplied factory pre-set.

Features

  • Designed for High Flow Liquid Service
  • Can be installed Upstream or Downstream of the Vaporizer
  • Unique Pre-Formed Multiple Stacked Phosphorous Bronze Diaphragms
  • Can be Supplied Factory Preset
  • Hex Head Adjustment Screw with Locknut
  • 304 SS Inlet Strainer/Filter
  • Optional Cleaned and Packaged for Oxygen Service (includes Monel Inlet Strainer/Filter)

Technical Data

  • Maximum Inlet Pressure: 400 Psig (28 Bar)
  • Outlet Pressure Range: 0 to 235 Psig (0 to 16 Bar)
  • Temperature Rating: -320° to 225° F (78° to 380° K)
  • Fail Open Cv
    • 3/8” NPT Ports – 2.4
    • 1/2” NPT and BSPT Ports – 2.9

Materials of Construction

  • Brass Body Construction
