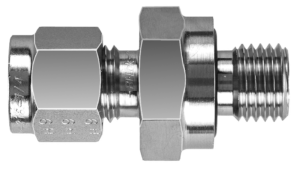

O-Seal Male Straight Thread Connector (DCO)
Description
| inch (mm) |
|||||||||||||
| Part No. | ØA | ØE | ØE1 | L | I | L1 | L2 | F | ØK | Hex 1 | Hex 2 | T | O-Ring |
| Tube OD | UNF | AS568 | |||||||||||
| DCO-1-2-* | 1/16 (1.59) |
0.05 (1.3) |
0.09 (2.3) |
1.06 (26.9) |
0.19 (4.9) |
0.90 (22.9) |
0.34 (8.6) |
0.35 (8.9) |
0.55 (14.0) |
9/16 | 5/16 | 5/16-24 | -011 |
| DCO-2-2-* | 1/8 (3.18) |
0.09 (2.3) |
0.09 (2.3) |
1.29 (32.7) |
0.25 (6.4) |
20.24 (6.0) |
0.34 (8.6) |
0.51 (13.0) |
0.55 (14.0) |
9/16 | 7/16 | 5/16-24 | -011 |
| DCO-3-3-* | 3/16 (4.76) |
0.12 (3.0) |
0.12 (3.0) |
1.37 (34.7) |
0.28 (7.2) |
1.10 (28.0) |
0.38 (9.7) |
0.54 (13.8) |
0.61 (15.4) |
5/8 | 1/2 | 3/8-24 | -012 |
| DCO-4-4-* | 1/4 (6.35) |
0.19 (4.8) |
0.19 (4.8) |
1.52 (38.7) |
0.31 (7.9) |
1.23 (31.2) |
0.41 (10.4) |
0.61 (15.4) |
0.73 (18.5) |
3/4 | 9/16 | 7/16-20 | -111 |
| DCO-5-5-* | 5/16 (7.94) |
0.25 (6.4) |
0.25 (6.4) |
1.61 (41.0) |
0.35 (8.8) |
1.32 (33.5) |
0.44 (11.2) |
0.64 (16.3) |
0.86 (21.9) |
7/8 | 5/8 | 1/2-20 | -112 |
| DCO-6-6-* | 3/8 (9.53) |
0.28 (7.1) |
0.28 (7.1) |
1.67 (42.5) |
0.37 (9.5) |
1.38 (35.0) |
0.47 (11.9) |
0.67 (17.0) |
0.93 (23.6) |
15/16 | 11/16 | 9/16-18 | -113 |
| DCO-8-8-* | 1/2 (12.7) |
0.41 (10.4) |
0.41 (10.4) |
1.81 (46.1) |
0.50 (12.7) |
1.41 (35.8) |
0.47 (11.9) |
0.91 (23.0) |
1.10 (28.0) |
1-1/8 | 7/8 | 3/4-16 | -116 |
| DCO-8-12-* | 1/2 (12.7) |
0.41 (10.4) |
0.62 (15.8) |
2.06 (52.3) |
0.50 (12.7) |
1.65 (42.0) |
0.56 (14.2) |
0.91 (23.0) |
1.48 (37.6) |
1-1/2 | 7/8 | 1-1/16-12 | -215 |
| DCO-10-10-* | 5/8 (15.88) |
0.50 (12.7) |
0.50 (12.7) |
1.94 (49.3) |
0.56 (14.3) |
1.54 (39.0) |
0.51 (13.0) |
0.97 (24.6) |
1.35 (34.4) |
1-3/8 | 1 | 7/8-14 | -119 |
| DCO-12-12-* | 3/4 (19.05) |
0.62 (15.8) |
0.62 (15.8) |
2.06 (52.3) |
0.56 (14.3) |
1.65 (42.0) |
0.56 (14.2) |
0.97 (24.6) |
1.48 (37.6) |
1-1/2 | 1-1/8 | 1-1/16-12 | -215 |
| DCO-16-16-* | 1 (25.4) |
0.89 (22.5) |
0.89 (22.5) |
2.31 (58.6) |
0.75 (19.1) |
1.81 (46.0) |
0.56 (14.2) |
1.24 (31.6) |
1.73 (44.0) |
1-3/4 | 1-1/2 | 1-5/16-12 | -219 |
*Add suffix SS for 316 stainless steel or B for brass.
*O-Ring is Buna 90.
